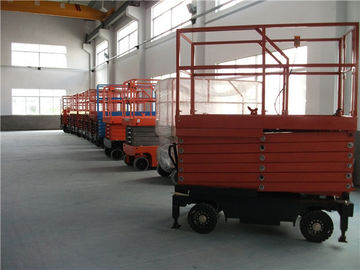

Easy Control Scissor Lift Aerial Work Platform For Workshops , Warehouse

large.img.alt
small.img.alt small.img.alt

Large Image :  Easy Control Scissor Lift Aerial Work Platform For Workshops , Warehouse Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SHINTOOL
Certification: CE, CQC
Model Number: SJY0.5-7.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 3400 - USD5000 Per Unit
Packaging Details: Export Standard Package
Delivery Time: 20 Days After Received Deposit
Payment Terms: 30% T/T in advance, 70% balance paid before delivery.
Supply Ability: 5000 units / year
Detailed Product Description
Max Lifting Height: 75000mm Load Capacity: 500kg
Platform Size: 2200*1000*1100mm Power: Electric AC
Lifting Power: 2.2kw Overall Length: 2270mm
Overall Width: 1300mm Overall Height: 1300mm
Weight: 1350kg
High Light:

scissor lift work platform

,

adjustable height work platforms

Easy Control Scissor Lift Aerial Work Platform For Workshops , Warehouse

Application:
It is widely used for the equipments installations and maintenance at the following places:

construction sites, workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline, etc.

The lifting height ranges 2-12m and lifting capacity varies from 300-500kg.The power sources
could be 220V, 380V or chargeable battery.

Detailed Information:
1. Ergonomic control panel, power indicator, electric shock protector, circuit breaker etc.
   Variety features are completely equipped.
2. The operator either on the platform or on the ground could press the emergency stop button
   to pause the platform unexpected movement if any electrical element is failure.
3. Lifting limit is controlled by positive break limit switch.
4. 24 V safety voltages for control circuit system.
5. Hydraulic system is equipped with broken valve; it will activate automatically
   to stop the flowing of hydraulic fluid in case any hydraulic fitting or piping is broken
   so as to prevent the platform unexpected movement and ensure personnel safety on the platform.

6. Emergency lowering device enable the platform descend slowly when power is unexpected fail.
7. Piston stroke limit in cylinder acts as second lifting limit protection sequential to the electric limit switch.
8. All mechanism strength for force borne structure are carefully calculated and strictly tested
   by experimentation, safety factor is never less than the standard requirement.
9. Equipped with stabilizers, patented double protection outriggers eliminate the clearance
   between the stabilizer and chassis so as to avoid the equipment fluctuating.
10. Revolvable outrigger stabilizers make the machine suitable for variable complicated area and location.
11. Stabilizers and electric safety switch elements form the interlock for platform up and down.




Specifications:

Model Number   SJY0.5-6 SJY0.5-7.5 SJY0.5-9 SJY0.5-11
Maximum Platform  Height mm 6000 7500 9000 11000
Minimum Platform Height mm 1080 1200 1360 1480
Platform Size mm 2200x1000x1100
Rated Lifting Capacity kg 500
The Developed Dimension mm 2700x2200
Elevating Time(Up) s 77
Electricmotor Power v/kw 2.2 3
Voltage v customized
Overall Weight kg 950 1350 1600 1800
Overall Length mm 2270
Overall Width mm 1300
Overall Height mm 1180 1300 1460 1580


Competitive Advantages:
1. Lift or Fall Steadily: the seamless transmission is used between the lifting masts, thus minimizing the
amount of sway after lifting.

2. Safe and Reliable: The four turning stabilizers of the unit connected to the four corners of the chassis
support the MEWP during work. They are designed for leveling regulation and preventing inclination.
They are composed of stand bars and turning legs. The stand bars are installed in the turning legs.
Extending out the turning legs before operating the unit enlarges the area of supporting. Therefore, the
steadiness of the whole platform is guaranteed.
