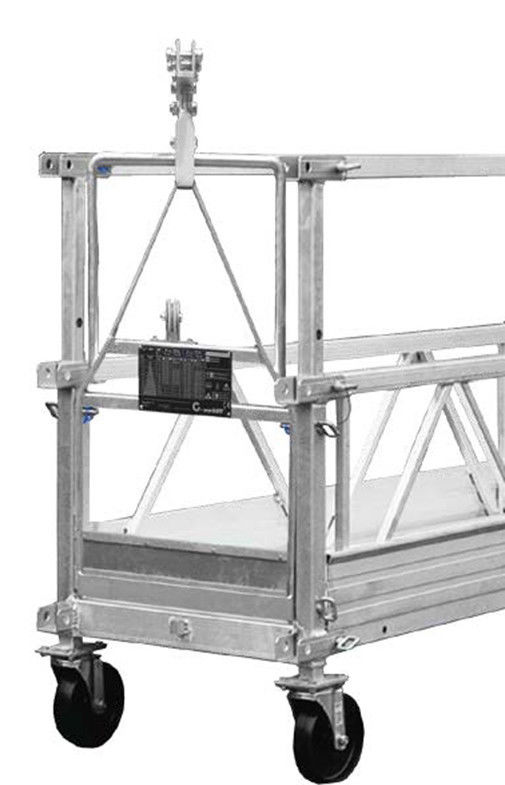

Building Wire Rope Suspended Platform

Building Wire Rope Suspended Platform
Building Wire Rope Suspended Platform Building Wire Rope Suspended Platform Building Wire Rope Suspended Platform Building Wire Rope Suspended Platform Building Wire Rope Suspended Platform

Large Image :  Building Wire Rope Suspended Platform Get Best Price

Product Details:
Place of Origin: China
Brand Name: Boruida
Certification: CE
Model Number: -
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pack in container
Delivery Time: 30-45 working days
Payment Terms: T/T before shipment, LC at sight
Supply Ability: 40pcs a month
Detailed Product Description
High Light:

suspended work platform

,

suspended platform hoist



ZLP800 Aluminum Alloy Power High Working Rope suspended platform with Steel Rope


Quick Detail:



Name

Other Name

Brand Name

Control

Rope suspended platform

Rope suspended platform ZLP800

BORUIDA

DOL and FC

Loading Capacity

800kg

Certificate

CE



Description:



ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level mutil-storey buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges, dams etc.

Applying this product can release scaffold free, reduce the costruction cost and the efficiency will be greatly increased. Mean while, the production is simple flexible, easy teansfer, easy to operate, safe and and reliable.


Applications:



ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level mutil-storey buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges, dams etc.


Specifications


Standard technical datas of Rope suspended platform :



Parameter

ZLP500

ZLP630

ZLP800

ZLP1000

Rated
loading capacity
(kg)

500

630

800

1000

Rated lifting speed
(m/min)

8~10

8~10

8~10

8~10

Rated passenger number

2

2

2

2

Max. lifting height(m)

150

150

150

150

Engine power(kW)

2*1.5

2*1.5

2*1.8

2*2.2

Platform Dimension L*W*H(mm)

5000(2+3m) *720*1300

6000(1+2+3m) *720*1300

7500(2.5*3m) *720*1300

7500(3*2.5) *720*1300

Cable (m)

160

160

160

160

Steel rope  (specially-made)

Ф8.3

Ф8.3

Ф8.6

Ф8.6

Safety lock

Permission force of impact

20KN

30KN

30KN

30KN

Locking Cable Angle

3°~8°

3°~8°

3°~8°

3°~8°

Suspension mechanism

Front beam overhang

 1.3~.1.5m

 1.3~.1.5m

 1.3~.1.5m

 1.3~.1.5m

Support adjustable height

1.44~2.14m

1.44~2.14m

1.44~2.14m

1.44~2.14m

Counterweight

800kg

900kg

1000kg

1200kg





Competitive Advantage:


1. Climing Principle:The suspended platform climbs up along the wire rope driven by the hoist. Without wraping up the wire rope, there is no limit on the height of climing in theory.Hoist- Using the “α”structure, the reliability of the hoist is high, and the service life is long.


2. Safety rope and safety lock- Two safety ropes are set independently. The suspended platform is set with safety locks. When the platform goes acclivitous, the hoist system gets major faults or ropes are broken off and falling, the safety locks will lock the wire ropes to ensure the safety of the operator and the machine.



3. Combination of the basket- According to customers’ requirements, the paltform can be combined in different forms and easy to transport.



4. Multiple flexible suspension mechanism- The suspension mechanism is applicable to different types of roofs and conveniently to delivery.



5. Convenient and reliable electrical control system- The electrical control system is equipped with protection switchs, operators can choose single- machine operation or two-machine operation system. It is equiped with movable operation box, external power box and the limit equipment against going up.


6. Reasonable designed structure and Attractive appearance- The steel structure is applied with thin-wall and rectangle steel pipe, compact and rational designed.
