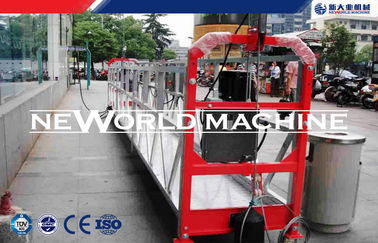

Manual Suspended Wire Rope Platform Cradle / Gondola / Swing Stage for highrise building

Manual Suspended Platform Wire Rope Suspended Platform

Quick Details

Specifications

1. Suspended Wire Rope Platform;
2. Model:ZLP500,630,800&1000
3. Voltage:220V,380V,400V,415V,440V ,3-phase.50HZ

Basic Specification  (Standard models)

If the specification is not what you need, our technical staff can customize acccording to the building configuration.

Safety Device

• 1.Safety lock and safety steel rope: Each end of platform install one safety lock and safety wire rope. In case the platform tilted to a certain range, the safe wire rope would be locked immediately to stop platform falling.
• 2.Safety rope : Safety rope is indispensable life protection connected with workers. It is made from high strength filament with 18mm/20mm diameter. When the platform decline due to a fault, the safety rope would get tightened to prevent people falling.
• 3.Limit switch and limit switch: prevent platform moving upwards or downwards beyond the limit.
• 4.Hoist brake electromagnetic brake:keep the platform suspended in case of circuit failure or power failure.
• 5.Centrifugal speed limiting device: ensure the platform descend or ascend at a speed no higher than 1.5 times of the rated lifting speed, keeping the platform moving more stable.
• 6.Manual hoist downhill device:in case of power failure or electrical failure, operate the manual to make platform descend and keep workers’ safe landing.
• 7.Electrical emergency stop: press the emergency button to stop the platform in case of danger.
• 8.Electric control box is designed with multiple protection such as over-heat protection, current overload protection and leakage protection to prevent any dangers that may happen during operation.


Advantages:

1, NEWORLD uses the the rolled steel from national large iron and steel company wholly.
2,  all of the rolled steel,welding material and key materials are tested before transporting to the workshop
3, our company has a strong and professional team in charge of new product research and update.
4, our products are made according to the drawing strictly, using 16Mn, 40Cr and 45# steel.
5, the front point of the crane arm is equipped with anti-warping device additionally.
6, the structure of tower adopts intensive form , excellent rigidity, without deformation.
7, the slewing tower body and standard section are processed by the double milling surface.
Good level of junction surface. Excellent stability, little wear of the slewing bearing. Long using life.
8, the safety equipment adopts the products from the first-rate manufacturer.
9, we adopt the submerged arc welding and carbon dioxide arc welding wholly. We use Imported welding
manipulator in the important parts, with advanced technology and high strength of connection

Products Show
