Product Details:
Payment & Shipping Terms:
|
| Brand Name: | MIRU ,OEM And So On | Type: | Roller |
|---|---|---|---|
| Structure: | Spherical | Free Samples: | Available |
| Clearance: | C2,C3,C4 | Cage: | Brass Cage, Nylon Cage, Iron Cage |
| High Light: | spherical roller thrust bearing,sealed spherical roller bearings |
||

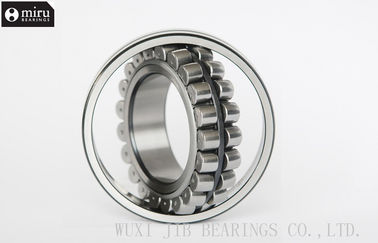

Spherical roller bearing
For electric motor or conveyor or gearbox or industrial fan
Reach DIN/ISO standards
SPHERICAL ROLLER BEARING
| Model |
d (mm) |
D (mm) |
B (mm) |
Mass (kg) |
| 22212CC | 60 | 110 | 28 | 1.15 |
Spherical roller bearings are double rows, self-aligning units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.
Spherical roller bearings can support axial forces in both directions and high radial forces. They are designed for very high load carrying capacity and, since they have the maximum possible number of large and particularly long barrel rollers, are also suitable for the heaviest loads.
Spherical roller bearings with a tapered bore are also available with an adapter sleeve, locknut and tab washer or with a withdrawal sleeve. Adapter and withdrawal sleeves can be provided seperately.
The bearings with a suffix "W33" have a circumferential groove and three lubrication holes in the outer ring for lubrication.
Detailed Product Description
Spherical Roller Bearing
(D170mm~240mm)
With the same center as the bearing,the spherically formed outer ring raceway can make selfalignment.Their
rolling elements linearly come into contact with the raceways of inner ring and outer ring.The bearings can take
greatly radial load,suitable for heavy machinery used in mining,metallurgical,paper-making and instructing,etc.,Industry.
Product Designs of MIRU
- ID: 20 mm --- 400 mm; OD: 50 mm --- 800 mm
- Two rows of extra large rollers
- Type: CA/MB/CC/E
- Cage: machined brass/ pressed steel;
- Snap Ring Groove on Outer Ring
- Inner bore: Straight/Tapered
- Lubrication groove and bores
- Black oxidation
- Clearance: C2/C0/C3/C4
- Working Temperature: S0/S1/S2/S3/S4
- Cast-steel housing
- Open /Sealed: Teflon/NBR/F-NBR/FKM
Product Benefits of MIRU
- Higher loading rate
- Silent movingFine self-alignment
- Slight Friction
- Less done time and maintenance cost
- Longer service life
- Industrial applications: Mining machineries, construction machineries, hoisting and conveying machineries,
paper machineries, textile machineries, elevators, etc.
Competitive Advantage:
1. We have our own factory.
2. Standard packing can be changed as your requirement.
3. The bearing cage could select according to your request.
4. size and color can be customized
5. Good communication sales team.
6. Quality Confirmation.
7. Experienced history.
8. Professional Team.
9. Good service.
10. Competitive price.
|
Bearing Type |
Other dimensions |
Basic load ratings(kN) |
Speed ratings(rpm) |
Weight(kg) |
||
|
dxDxB |
dyc(Cr) |
stc(Cor) |
Grease |
Oil |
||
|
23034CA/W33 |
170x260x67 |
555 |
1090 |
1600 |
2000 |
14.2 |
|
23034MB/W33 |
170x260x67 |
555 |
1090 |
1600 |
2000 |
14.2 |
|
23034CC/W33 |
170x260x67 |
555 |
1090 |
1600 |
2000 |
14.0 |
|
23134CA/W33 |
170x280x88 |
730 |
1390 |
1200 |
1600 |
26.1 |
|
23134MB/W33 |
170x280x88 |
730 |
1390 |
1200 |
1600 |
26.1 |
|
23134CC/W33 |
170x280x88 |
730 |
1390 |
1200 |
1600 |
25.6 |
|
23234CA/W33 |
170x310x110 |
1070 |
1930 |
950 |
1300 |
38.0 |
|
23234MB/W33 |
170x310x110 |
1070 |
1930 |
950 |
1300 |
38.0 |
|
23234CC/W33 |
170x310x110 |
1070 |
1930 |
950 |
1300 |
37.5 |
|
23934CA/W33 |
170x230x45 |
400 |
800 |
1800 |
2400 |
5.45 |
|
23334CA/W33 |
170x360x136 |
1420 |
2250 |
900 |
1200 |
68.7 |
|
23334MB/W33 |
170x360x136 |
1420 |
2250 |
900 |
1200 |
68.7 |
|
24134CA/W33 |
170x280x109 |
915 |
1830 |
1000 |
1400 |
24.8 |
|
24134MB/W33 |
170x280x109 |
915 |
1830 |
1000 |
1400 |
24.8 |
|
24134CC/W33 |
170x280x109 |
915 |
1830 |
1000 |
1400 |
24.1 |
|
24034CA/W33 |
170x260x90 |
705 |
1500 |
1000 |
1400 |
17.8 |
|
24034MB/W33 |
170x260x90 |
705 |
1500 |
1000 |
1400 |
17.8 |
|
24034CC/W33 |
170x260x90 |
705 |
1500 |
1000 |
1400 |
17.1 |
|
22234CA/W33 |
170x310x86 |
845 |
1450 |
1300 |
1700 |
26.8 |
|
22234MB/W33 |
170x310x86 |
845 |
1450 |
1300 |
1700 |
26.8 |
|
22234CC/W33 |
170x310x86 |
845 |
1450 |
1300 |
1700 |
26.1 |
|
22334CA/W33 |
170x360x120 |
1320 |
2120 |
950 |
1300 |
62.6 |
|
22334MB/W33 |
170x360x120 |
1320 |
2120 |
950 |
1300 |
62.6 |
|
22334CC/W33 |
170x360x120 |
1320 |
2120 |
950 |
1300 |
62.1 |
|
23036CA/W33 |
180x280x74 |
630 |
1280 |
1400 |
1800 |
17.7 |
|
23036MB/W33 |
180x280x74 |
630 |
1280 |
1400 |
1800 |
17.7 |
|
23036CC/W33 |
180x280x74 |
630 |
1280 |
1400 |
1800 |
17.4 |
|
23136CA/W33 |
180x300x96 |
900 |
1720 |
1100 |
1500 |
27.1 |
|
23136MB/W33 |
180x300x96 |
900 |
1720 |
1100 |
1500 |
27.1 |
|
23136CC/W33 |
180x300x96 |
900 |
1720 |
1100 |
1500 |
26.6 |
|
23236CA/W33 |
180x320x112 |
1160 |
2130 |
900 |
1200 |
38.7 |
|
23236MB/W33 |
180x320x112 |
1160 |
2130 |
900 |
1200 |
38.7 |
|
23236CC/W33 |
180x320x112 |
1160 |
2130 |
900 |
1200 |
38.4 |
|
23936CA/W33 |
180x250x52 |
430 |
830 |
1700 |
2200 |
7.34 |
|
23936CC/W33 |
180x250x53 |
430 |
830 |
1700 |
2200 |
7.34 |
|
24136CA/W33 |
180x300x118 |
1020 |
2030 |
900 |
1200 |
33.0 |
|
24136MB/W33 |
180x300x118 |
1020 |
2030 |
900 |
1200 |
33.0 |
|
24136CC/W33 |
180x300x118 |
1020 |
2030 |
900 |
1200 |
32.7 |
|
24036CA/W33 |
180x280x100 |
835 |
1750 |
950 |
1300 |
26.6 |
|
24036MB/W33 |
180x280x100 |
835 |
1750 |
950 |
1300 |
26.6 |
|
24036CC/W33 |
180x280x100 |
835 |
1750 |
950 |
1300 |
26.2 |
|
22236CA/W33 |
180x320x86 |
895 |
1550 |
1300 |
1700 |
29.4 |
|
22236MB/W33 |
180x320x86 |
895 |
1550 |
1300 |
1700 |
29.4 |
|
22236CC/W33 |
180x320x86 |
895 |
1550 |
1300 |
1700 |
29.1 |
|
22336CA/W33 |
180x380x126 |
1470 |
2400 |
900 |
1200 |
72.2 |
|
22336MB/W33 |
180x380x126 |
1470 |
2400 |
900 |
1200 |
72.2 |
|
22336CC/W33 |
180x380x126 |
1470 |
2400 |
900 |
1200 |
72.0 |
|
23038CA/W33 |
190x290x75 |
700 |
1450 |
1300 |
1700 |
17.3 |
|
23038MB/W33 |
190x290x75 |
700 |
1450 |
1300 |
1700 |
17.3 |
|
23038CC/W33 |
190x290x75 |
700 |
1450 |
1300 |
1700 |
17.1 |
|
23138CA/W33 |
190x320x104 |
975 |
1840 |
1000 |
1400 |
34.3 |
|
23138MB/W33 |
190x320x104 |
975 |
1840 |
1000 |
1400 |
34.3 |
|
23138CC/W33 |
190x320x104 |
975 |
1840 |
1000 |
1400 |
34.0 |
|
23238CA/W33 |
190x340x120 |
1290 |
2400 |
850 |
1100 |
44.8 |
|
23238MB/W33 |
190x340x120 |
1290 |
2400 |
850 |
1100 |
44.8 |
|
23238CC/W33 |
190x340x120 |
1290 |
2400 |
850 |
1100 |
44.4 |
|
23938CA/W33 |
190x260x52 |
550 |
980 |
1500 |
2000 |
8.32 |
|
23938CC/W33 |
190x260x52 |
550 |
980 |
1500 |
2000 |
8.01 |
|
24138CA/W33 |
190x320x128 |
1200 |
2400 |
850 |
1100 |
41.9 |
|
24138MB/W33 |
190x320x128 |
1200 |
2400 |
850 |
1100 |
41.9 |
|
24138CC/W33 |
190x320x128 |
1200 |
2400 |
850 |
1100 |
41.5 |
|
24038CA/W33 |
190x290x100 |
855 |
1840 |
950 |
1300 |
22.9 |
|
24038MB/W33 |
190x290x100 |
855 |
1840 |
950 |
1300 |
22.9 |
|
24038CC/W33 |
190x290x100 |
855 |
1840 |
950 |
1300 |
22.5 |
|
22238CA/W33 |
190x340x92 |
865 |
1620 |
1200 |
1600 |
37.4 |
|
22238MB/W33 |
190x340x92 |
865 |
1620 |
1200 |
1600 |
37.4 |
|
22238CC/W33 |
190x340x92 |
865 |
1620 |
1200 |
1600 |
37.0 |
|
22338CA/W33 |
190x400x132 |
1640 |
2630 |
850 |
1100 |
82.2 |
|
22338MB/W33 |
190x400x132 |
1640 |
2630 |
850 |
1100 |
82.2 |
|
22338CC/W33 |
190x400x132 |
1640 |
2630 |
850 |
1100 |
82.0 |
|
23040CA/W33 |
200x310x82 |
770 |
1560 |
1200 |
1600 |
22.6 |
|
23040MB/W33 |
200x310x82 |
770 |
1560 |
1200 |
1600 |
22.6 |
|
23040CC/W33 |
200x310x82 |
770 |
1560 |
1200 |
1600 |
22.1 |
|
23140CA/W33 |
200x340x112 |
1170 |
2240 |
950 |
1300 |
43.8 |
|
23140MB/W33 |
200x340x112 |
1170 |
2240 |
950 |
1300 |
43.8 |
|
23140CC/W33 |
200x340x112 |
1170 |
2240 |
950 |
1300 |
43.1 |
|
23240CA/W33 |
200x360x128 |
1360 |
2530 |
850 |
1100 |
53.4 |
|
23240MB/W33 |
200x360x128 |
1360 |
2530 |
850 |
1100 |
53.4 |
|
23240CC/W33 |
200x360x128 |
1360 |
2530 |
850 |
1100 |
53.1 |
|
23940CA/W33 |
200x280x60 |
495 |
1150 |
1600 |
2000 |
13.2 |
|
23940MB/W33 |
200x280x60 |
495 |
1150 |
1600 |
2000 |
13.2 |
|
23940CC/W33 |
200x280x60 |
495 |
1150 |
1600 |
2000 |
13.0 |
|
23340CA/W33 |
200x420x165 |
2020 |
3500 |
750 |
950 |
125 |
|
23340MB/W33 |
200x420x165 |
2020 |
3500 |
750 |
950 |
125 |
|
24140CA/W33 |
200x340x140 |
1630 |
2450 |
900 |
1200 |
53.5 |
|
24140MB/W33 |
200x340x140 |
1630 |
2450 |
900 |
1200 |
53.5 |
|
24140CC/W33 |
200x340x140 |
1630 |
2450 |
900 |
1200 |
53.1 |
|
24040CA/W33 |
200x310x109 |
985 |
2130 |
900 |
1200 |
31.3 |
|
24040MB/W33 |
200x310x109 |
985 |
2130 |
900 |
1200 |
31.3 |
|
24040CC/W33 |
200x310x109 |
985 |
2130 |
900 |
1200 |
31.0 |
|
22240CA/W33 |
200x360x98 |
1100 |
1950 |
1100 |
1500 |
44.7 |
|
22240MB/W33 |
200x360x98 |
1100 |
1950 |
1100 |
1500 |
44.7 |
|
22240CC/W33 |
200x360x98 |
1100 |
1950 |
1100 |
1500 |
44.1 |
|
22340CA/W33 |
200x420x138 |
1740 |
2860 |
850 |
1100 |
97.0 |
|
22340MB/W33 |
200x420x138 |
1740 |
2860 |
850 |
1100 |
97.0 |
|
22340CC/W33 |
200x420x138 |
1740 |
2860 |
850 |
1100 |
96.6 |
|
23044CA/W33 |
220x340x90 |
935 |
1900 |
1100 |
1500 |
32.0 |
|
23044MB/W33 |
220x340x90 |
935 |
1900 |
1100 |
1500 |
32.0 |
|
23044CC/W33 |
220x340x90 |
935 |
1900 |
1100 |
1500 |
31.7 |
|
23144CA/W33 |
220x370x120 |
1370 |
2710 |
900 |
1200 |
54.7 |
|
23144MB/W33 |
220x370x120 |
1370 |
2710 |
900 |
1200 |
54.7 |
|
23144CC/W33 |
220x370x120 |
1370 |
2710 |
900 |
1200 |
54.4 |
|
23244CA/W33 |
220x400x144 |
1720 |
3200 |
750 |
950 |
77.3 |
|
23244MB/W33 |
220x400x144 |
1720 |
3200 |
750 |
950 |
77.3 |
|
23244CC/W33 |
220x400x144 |
1720 |
3200 |
750 |
950 |
77.0 |
|
23944CA/W33 |
220x300x60 |
500 |
980 |
1520 |
1760 |
12.5 |
|
23944MB/W33 |
220x300x60 |
500 |
980 |
1520 |
1760 |
12.5 |
|
23944CC/W33 |
220x300x60 |
500 |
980 |
1520 |
1760 |
12.1 |
|
24144CA/W33 |
220x370x150 |
1920 |
3045 |
800 |
1000 |
67.0 |
|
24144MB/W33 |
220x370x150 |
1920 |
3045 |
800 |
1000 |
67.0 |
|
24144CC/W33 |
220x370x150 |
1920 |
3045 |
800 |
1000 |
66.6 |
|
24044CA/W33 |
220x340x118 |
1150 |
2500 |
850 |
1100 |
39.1 |
|
24044MB/W33 |
220x340x118 |
1150 |
2500 |
850 |
1100 |
39.1 |
|
24044CC/W33 |
220x340x118 |
1150 |
2500 |
850 |
1100 |
38.7 |
|
22244CA/W33 |
220x400x108 |
1350 |
2400 |
950 |
1300 |
63.5 |
|
22244MB/W33 |
220x400x108 |
1350 |
2400 |
950 |
1300 |
63.5 |
|
22244CC/W33 |
220x400x108 |
1350 |
2400 |
950 |
1300 |
63.1 |
|
22344CA/W33 |
220x460x145 |
2450 |
3130 |
800 |
1000 |
115 |
|
22344MB/W33 |
220x460x145 |
2450 |
3130 |
800 |
1000 |
115 |
|
22344CC/W33 |
220x460x145 |
2450 |
3130 |
800 |
1000 |
115 |
|
23048CA/W33 |
240x360x92 |
985 |
2080 |
1000 |
1400 |
34.2 |
|
23048MB/W33 |
240x360x92 |
985 |
2080 |
1000 |
1400 |
34.2 |
|
23048CC/W33 |
240x360x92 |
985 |
2080 |
1000 |
1400 |
34.0 |
|
23148CA/W33 |
240x400x128 |
1500 |
3000 |
850 |
1100 |
68.2 |
|
23148MB/W33 |
240x400x128 |
1500 |
3000 |
850 |
1100 |
68.2 |
|
23148CC/W33 |
240x400x128 |
1500 |
3000 |
850 |
1100 |
68.0 |
|
23248CA/W33 |
240x440x160 |
2080 |
3950 |
750 |
900 |
102 |
|
23248MB/W33 |
240x440x160 |
2080 |
3950 |
750 |
900 |
102 |
|
23248CC/W33 |
240x440x160 |
2080 |
3950 |
750 |
900 |
102 |
|
23948CA/W33 |
240x320x60 |
530 |
1310 |
1300 |
1700 |
15.0 |
|
23948MB/W33 |
240x320x60 |
530 |
1310 |
1300 |
1700 |
15.0 |
|
23948CC/W33 |
240x320x60 |
530 |
1310 |
1300 |
1700 |
14.7 |
|
24148CA/W33 |
240x400x160 |
1660 |
3400 |
800 |
1000 |
79.0 |
|
24148MB/W33 |
240x400x160 |
1660 |
3400 |
800 |
1000 |
79.0 |
|
24148CC/W33 |
240x400x160 |
1660 |
3400 |
800 |
1000 |
78.6 |
|
24048CA/W33 |
240x360x118 |
1240 |
2800 |
900 |
1200 |
46.5 |
|
24048MB/W33 |
240x360x118 |
1240 |
2800 |
900 |
1200 |
46.5 |
|
24048CC/W33 |
240x360x118 |
1240 |
2800 |
900 |
1200 |
46.1 |
|
22248CA/W33 |
240x440x120 |
1640 |
1820 |
850 |
1150 |
85.0 |
|
22248MB/W33 |
240x440x120 |
1640 |
1820 |
850 |
1150 |
85.0 |
|
22248CC/W33 |
240x440x120 |
1640 |
1820 |
850 |
1150 |
84.8 |
|
22348CA/W33 |
240x500x155 |
2480 |
3200 |
750 |
1000 |
150 |
|
22348MB/W33 |
240x500x155 |
2480 |
3200 |
750 |
1000 |
150 |
|
22348CC/W33 |
240x500x155 |
2480 |
3200 |
750 |
1000 |
149 |
Contact Person: tt
