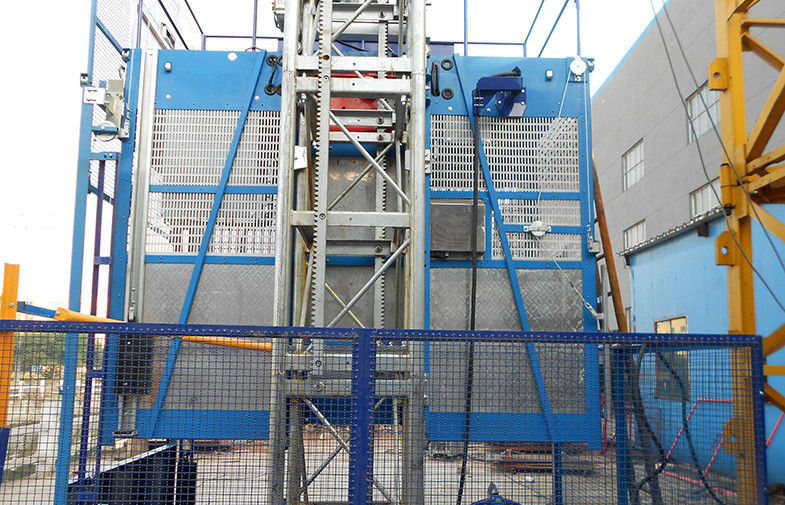

Rack and Pinion Building Material Hoisting Equipment / Construction Lift 1T - 3.2 Ton

Rack and Pinion Building Material Hoisting Equipment / Construction Lift 1T - 3.2 Ton
Rack and Pinion Building Material Hoisting Equipment / Construction Lift 1T - 3.2 Ton Rack and Pinion Building Material Hoisting Equipment / Construction Lift 1T - 3.2 Ton Rack and Pinion Building Material Hoisting Equipment / Construction Lift 1T - 3.2 Ton Rack and Pinion Building Material Hoisting Equipment / Construction Lift 1T - 3.2 Ton

Large Image :  Rack and Pinion Building Material Hoisting Equipment / Construction Lift 1T - 3.2 Ton Get Best Price

Product Details:
Place of Origin: China
Brand Name: Boruida
Certification: CE
Model Number: -
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pack in container
Delivery Time: 30-45 working days
Payment Terms: T/T before shipment, LC at sight
Supply Ability: 40pcs a month
Detailed Product Description
MAX STANDING HEIGHT: 15.08m Material: Manganese Steel Q345B
Landing Control System: Siemens PLC Control System: FC
Surface Treatment: Hot Galvanized Capacity: 2000kg
High Light:

construction material lift

,

man and material hoist

60m Double Car Construction Material Hoist with Schneider Inverter 45kw





RFQ



Q: What is the building hoist main purpose?
A: Building hoist equipped with double or single cabin to transport the materials and labors up and down. It's the ideal construction equipment for vertical transportation in the field of construction.



Q: What is the main structure of building hoist?
A: The P/M construction hoist mainly contains metal structure, driving system, electrical control system, cable guide & protection system, electrical top crane and safety device.

Q: What is the meaning of the building hoist’s code?
A: Take SC200/200 for example: “SC” stands for rack and pinion hoist, “200/200” stands for double cage and capacity is 2 tons per cage. “SC200” stands for single cage and capacity is 2 tons.

Q: What is the dimension of the cage?
A: Normally the cage dimension is 3X1.5X2.2M (L/W/H) for 2t type hoist. Details should be checked according to our quotation sheet. Also, the size can be customized according to the factual site condition. There are two doors (entrance & exit doors) for each cage, It can be produced as up & down sliding or ramping model for safety and convenience.



Quick Detail:



Name

Other Name

Brand Name

Control

Construction Hoist

Construction Hoist SC 200

BORUIDA

DOL and FC

Loading Capacity

2000kg

Certificate

CE





Characteristics:



The Construction Material Hoist is the new-generation product designed with advanced technology from domestic and abroad introduced to our company. Compared with traditional construction hoist, the new generation SC series is more comfortable, safe, reliable and convenient for dismantling and maintenance with more reasonable and compact structure, strong and durable cages, attractive appearance and precise parts.



Specifications



Standard technical datas of  double cages:



Parameter

SC100/100

SC160/160

SC200/200

SC270/270

SC320/320

Rated
loading capacity
(kg)

1000/1000

1600/1600

2000/2000

2700/2700

3200/3200

Rated lifting speed
(m/min)

0~40

0~40

0~60

0~60

0~60

Rated passenger number

12/12

18/18

24/24

30/30

38/38

Max. lifting height(m)

150

250

450

450

450

Engine power(kW)

2*2*9.5

2*2*11

2*2*13

2*3*18.5

2*3*22

Cage inner dimension
(L*W*H)(m)

3*1.3*2.5

3*1.4*2.5

3*1.5*2.5

3.2*1.5*2.5

3.6*1.6*2.5

Cage weight (kg)

1400

1500

1800

1950

2050

Mast section weight
(kg)

145

145

163

163

163

Mast section dimension

(mm)

650*650*1508

650*650*1508

650*650*1508

650*650*1508

650*650*1508

Safety device type

 SAJ30-1.2

SAJ40-1.2

SAJ40-1.4

SAJ40-1.4

SAJ50-2.0

Hanger rated lifting

capacity
(kg)

250

250

250

250

250

Rack module

8

8

8

8

8



Construction Material Hoist specifications:



1. Cage load capacity: 1000kg~3200kg, can be customized as requirements.

2. Lifting speed: 33m/min, 0~40m/min, 0~60m/min, 0~96m/min.

3. Increased lifting height on request.

4. Mast section: Painted or hot dipped zinc.

5. Mast section: 650 or 450.

6. Cage: double cage or single cage.

7. Door types: Vertical sliding door, Vertical door with manual bridge, Vertical sliding door C side. (Optional).

8. Recommended cage inner dimensions (L*W*H): 3*1.3*2.2m, 3*1.4*2.2m, 3*1.5*2.2m, 3.2*1.5*2.2m, 3.6*1.5*2.2m, up to requirements of customers.

9. Motor and reducing device: Made in China, or using SEW, Schneider, Nord and other world class brand drive units, up to requirements.



Competitive Advantage:



1). Compact design and comfortable operation environment

2). Proven helical gearbox as an option

3). Single and double cage configurations

4). Design without countweight

5). Multiple choices of doors

6). Simple and easy operation system

7). Recessed control panel

8). PLC control as an option

9). Dorable materials:high quality steel for increased strength and weight reduction,hot dip

10). galvanized mast section and tie-in

11). Wide range of tie-in

12). Wide range of optional equipment and functions
