Engineering Drill Rig Reverse Circulation , Skid Mounted Drilling Rig

Engineering Drill Rig Reverse Circulation , Skid Mounted Drilling Rig
Engineering Drill Rig Reverse Circulation , Skid Mounted Drilling Rig Engineering Drill Rig Reverse Circulation , Skid Mounted Drilling Rig Engineering Drill Rig Reverse Circulation , Skid Mounted Drilling Rig

Large Image :  Engineering Drill Rig Reverse Circulation , Skid Mounted Drilling Rig Get Best Price

Product Details:
Place of Origin: Jiangsu,China
Brand Name: xitan
Certification: ISO9001:2008
Model Number: XY-4-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set/Sets
Price: Contact us
Packaging Details: In 40′container with drilling tools
Delivery Time: One Month
Payment Terms: T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: One set per month
Detailed Product Description
High Light:

water well drilling rig

,

portable core drill

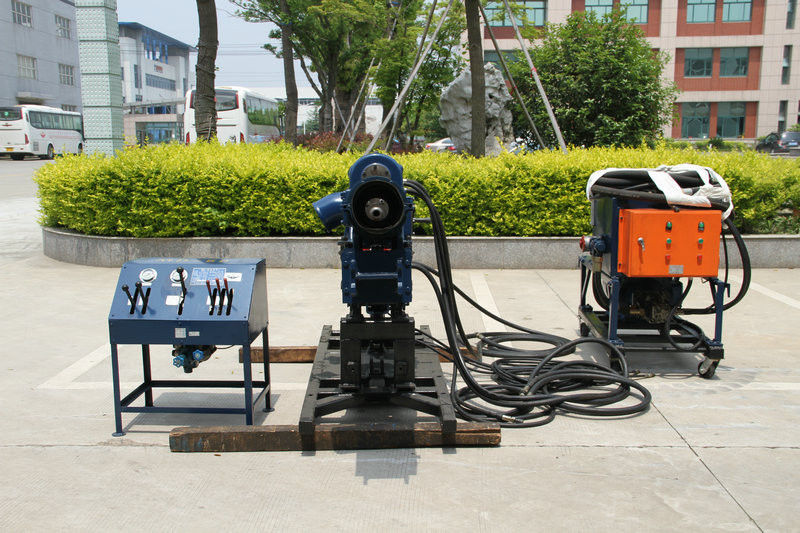

XY-4-3A Engineering Drill Rig Reverse Circulation , Skid Mounted Drilling Rig

Quick Detail:


1.    The new type drill unites the tower and machine body,the tower can directly pull down the steel cages
2.    The drilling rig can be used not only in core drilling,bored construction pile, but also in water well.The Spindle I.D. is 78mm.
3.    The drill can be used in drilling technologies of reverse circulation in the hard rock stratum and ground.



Description:


1.    XY-4-3A Drill is improved and designed based on XY-4 drill. The new type drill unites the tower and machine body.
2.    The tower can directly pull down the steel cages.
3.    The drilling rig can be used not only in core drilling, bored construction pile,but also in water well.

4.    Oil cylinders of the drill can raise or pull down the tower safely and quickly, move and fit the hole position conveniently.
5.    The drill can be used in drilling technologies of reverse circulation in the hard rock stratum and ground.





Specifications:

Hole depth 200-400m Rod dia 300mm
Hole depth 50-100m Rod dia 500mm



Hole depth





20-50m

Rod dia 1000mm



Hole angle(°)



360°
Spindle speed 1500rpm
Stroke of spindle 600mm
Max .lifting capacity 72KN
Max .feeding capacity 54KN
Hoist

Max .lifting capacity

(single line):

29KN
Lifting speed: 0.82;1.53;2.16;3.13m/s



Power

Electric motor: 37kw,1480rpm/30kw,980rpm
Diesel engine 40kw,2000rpm
Retraction device stroke (mm) 520
Weight 2000kg
Dimensions (L×W×H) 2700×1000×1750mm




Applications:


The drilling rig can be used not only in core drilling,bored construction pile, but also in water well.




Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
