| High Light: | Road Cutter Machine,Concrete Road Cutter |
||
|---|---|---|---|

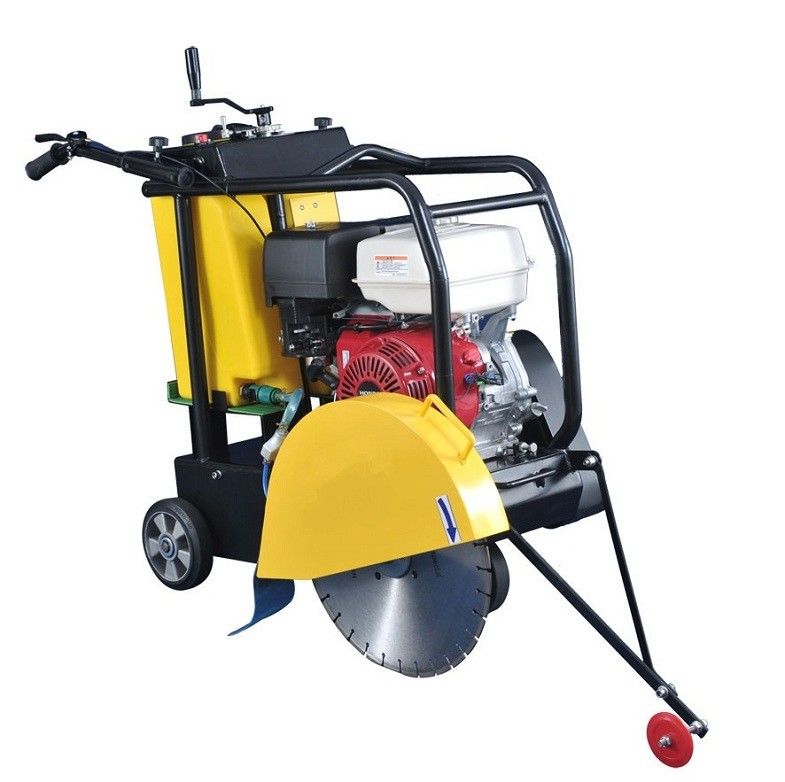

Road Construction Machinery Concrete Cutting Machine with Honda Engine
|
Model |
KT-QG450H |
KT-QG450S |
KT-QG450D |
|
Engine |
Petrol, Honda GX390 |
Petrol, Subaru EX40 |
Diesel, HP186F |
|
Type of Combustion |
Air-cooled, single cylinder,4-stroke |
||
|
Disc diameter cm(in) |
35(14”); 40(16”); 45(18”); 50(20”) |
||
|
Max. Cutting depth cm(in) |
14.5 (5.7”) |
||
|
Operating weight |
116kg |
||
|
Packing Size cm(in) |
93*61*110 (37*24*43) |
||
|
Other engines are available as requested |
|||
This machine is used for cutting the expansion joint on concrete floor. Meanwhile, it can cut and groove all standard manufactures of concrete, marble and granite. It is a necessary machine in the construction of road.
Super-rigid box frame ensures straight cuts while resisting warping and vibration-prolongs saw life; extends blade life. Height adjustment handle with comfortable grip handles, easy crank for raising/lowing cutting depth. Hinged front lift-up blade guard is designed to provide easy blade replacement; easy-remove, restless poly water tank provides an optimum flow and volume of water to the blade.
It uses sheet diamond, which has the virtues of quick cutting speed, and even cut. Meanwhile, sheet diamond could cut the steal beams in concrete. It has simply, safety construction, easy and flexible operations.
Competitive Advantage:
Ergonomics designed handle makes the operation more comfortable and speedy.
Special protective covering protects the engine perfectly and makes the transportation more safely.
The unique designed water tank provides adequate water supply and perfect cooling effect, no residual water and makes the maintenance easier.
Special blade cover makes the assembling and disassembling more easier.
Folding guide wheel for accurate cutting
Adjustable cutting depth assures the cutting working more precise and efficient.
