Product Details:
Payment & Shipping Terms:
|
| Color: | Yellow | Material: | Q235B |
|---|---|---|---|
| Capacity: | 250kg - 5000kg | Lifting Height: | 3m - 6m |
| Jib Length: | 3m - 6m | Rotating Angle(° ): | 0-360° |
| Duty Group: | ISO M3 - ISO M5 | Power Supply: | 220 - 600V, 50 - 60Hz |
| High Light: | forklift jib crane,portable jib crane |
||

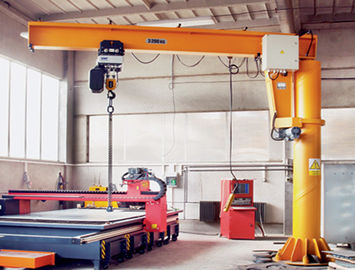

Free Standing 3ton Dual Speed Electric Jib Crane With Chain Hoist
Applications:
BZD Series pillar mounted jib crane / Column mounted jib crane / Fixed pillar floor mounted jib crane / Self-supported pillar mounted type jib crane is widely used to control or position the load in an area that is generally inaccessible to material handling equipment, or where the load, weight or duty cycle make it impractical to employ manual rotation.
This kind of crane is designed to provide reliable, long-life performance with minimal maintenance.
Description:
Pillar mounted jib crane / Column mounted jib crane / Fixed pillar floor mounted jib crane / Self-supported pillar mounted type jib crane constitute of pillar, swivel gear, slewing, and electric hoist, it mainly includes upper column, down column, main girder, main pull rod, hoisting mechanism, swing mechanism, electric System, ladder stand and maintenance platform. Column bottom fixed on concrete foundation, Both chain hoist or steel wire rope hoist are optional, hoist mounted on slewing runway to lift goods. The capacity is 125~10,000KG, Slewing range is 0-360 degree. Rotary way is manually or motorized; Control method is floor and wireless control.
This kind of crane is small and medium size lifting equipment, safe, reliable, high efficiency, energy-saving, time-saving and labor-saving and flexible feather, in the three-dimensional space and can operate freely, especially in the short, intensive lifting showing the occasion better than any other conventional lifting equipment unique advantages, widely used in workshops, warehouses, terminals and other fixed location.
Specifications:
| Model No. | BZD-250 | BZD-500 | BZD-1000 | BZD-2000 | BZD-3000 | BZD-5000 | |
| Rated Capacity(kg) | 250 | 500 | 1000 | 2000 | 3000 | 5000 | |
| Lifting height h(m) | 3 | 3 | 3 | 3 | 3 | 3 | |
| Max. rotating radius L(m) | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | |
| Max. working radius R2 (m) | L-200mm | ||||||
| Min. working radius R1 (m) | 1 | 1 | 1 | 1 1.5 | 1.8 | 1.8 | |
| Lifting speed (m/min) |
4/1, 10/2.5 |
5/1.25, 10/2.5 |
5/1.25, 8/2 |
4/1 | 4 | 8 | |
| Horizontal travelling speed (m/min) | 7,14,28 | ||||||
| Rotating speed(R/min) | 0.8 | ||||||
| Rotating angle(° ) | 0-360° | ||||||
| Rotating method | Manual or electrical | ||||||
| Elective Power | 220-480V , 3-PHASE 50/60Hz | ||||||
|
Motor |
Rotating motor (kw) | 0.37 | 0.37 0.55 | 0.37 0.55 | 0.55 0.75 1.1 | 0.55 0.75 1.1 | 1.1 |
| Lifting motor (kw) | 0.2/0.05 0.5/0.13 | 0.5/0.13 1.0/0.25 | 1.0/0.25 1.5/0.35 | 1.5/0.35 | 2.3 | 2.3 | |
| Operation motor (kw) | 0.14 | 0.14 | 0.2 | 0.2 | 0.4 | 0.5 | |
Competitive Advantage:
- Efficient assembly
Modular design and construction, horizontal adjustment device for the beam, clear and illustrated assembly instructions.
- Flat cable feeding line with sliding supports, with stable operation and easy operation.
- Complete solution for lifting needs, Max. 10,000kg
- Versatile solutions
Designed as pillar or wall mounted jib crane, depending on height under roof as over braced or as underbraced solution; wide variety of electrical or manual hoists, no local restrictions with optional base plate
- Flexibility
Available as complete crane or as jib crane kit, individual manufacturing and reduced transport-costs with the jib steer kit, component package ready for assembly together with the complete jib steer
- High quality standard
Design according to international standards (EN 130011), high quality materials and controlled processing, powerful hoists
