| High Light: | Construction Hoist,building hoist,Construction Lifter |
||
|---|---|---|---|
construction material hoist
| m/min | 0-96 | ||
| Free standing height | m | 50 | |
| Max. Lifting Height | m | 400 | |
| Max. Free End Height of Guides | m | 7.5 | |
| Modulus | 8 | ||
| Carriage Weight | kg | 1012×2 | |
| Size of Carriage | m | 3×1.3×2.3 | |
| Standard Knot Weight | kg | 146 | |
| Dimension of mast section | m | 0.65×0.65×1.508 | |
| Motor | |||
| Rated Power | Kw | 3×18.5 | |
| Rated Rotate Speed | r/min | 1460 | |
| Reducer | Center Distance | mm | 125 |
| Ratio | 1:16 | ||
| Over speed Governor | Type | progressive type | |
| Model | SAJ40-1.2A safety device | ||
| Operation Speed | m/min | 51.6 | |
| Brake Moment | N.m | ≥3000 | |
| Lifter Weight | t | 22 | |

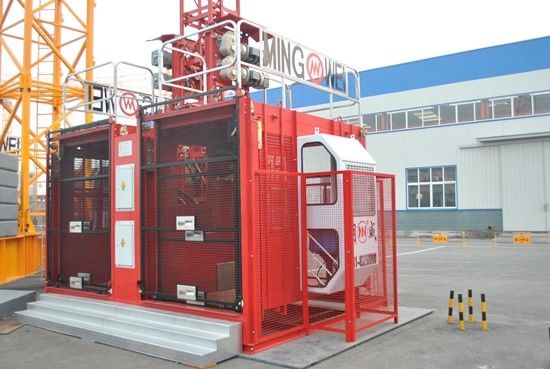

Pictures show
Our services
1.Customized service.
We can do all special design according to yourrequirement
2. welcome visit our factory, learn about our factory and products.
3. 24 hours on line or phone , technical support
After sale service:
1. The seller will send one of her professional technicians to the site of buyer toguide the erecting work.
2. 12(twelve)months (except for wire rope and AC contactor) after the equipment be well erected and we will offer spare parts whole year long.
3.life long time freely provide technical support.
