300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys

I'm Online Chat Now
Certification
China China Work Platforms Online Market certification
China China Work Platforms Online Market certification
You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation

—— Tim

Does your sourcing platform have a good reputation, the delivery time was very punctual, there was no case of poor stock, and we did not find cargo da

—— Mr. Carlos

Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

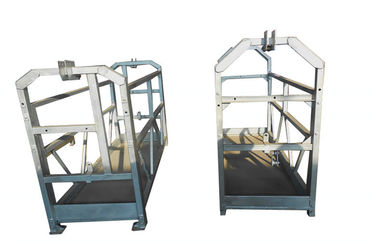

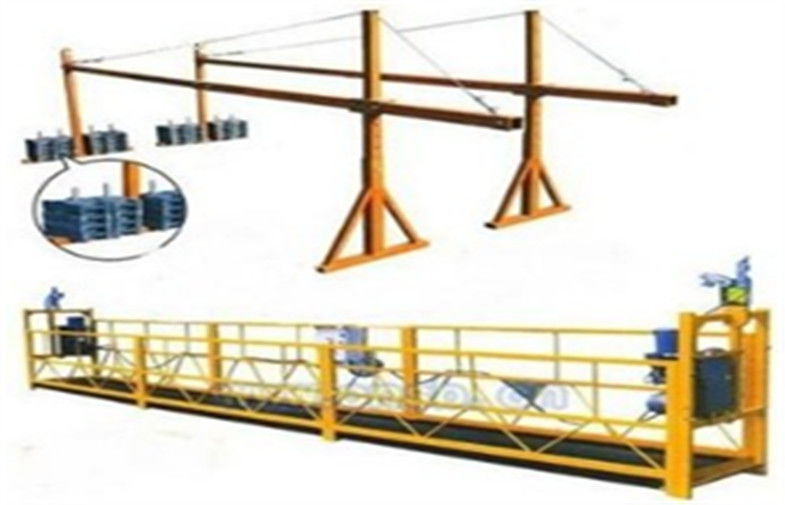

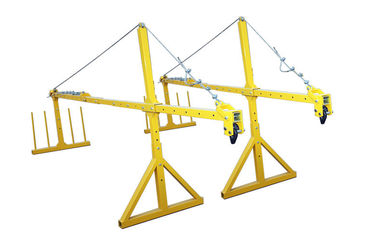

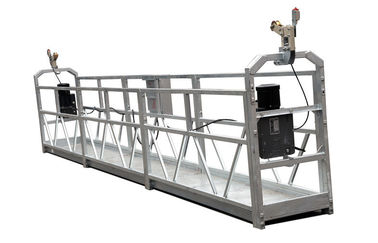

300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys

300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys
300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys

Large Image :  300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys Get Best Price

Product Details:
Place of Origin: SHANDONG, CHINA
Brand Name: HAOKE
Certification: ISO, CE
Model Number: ZLP1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: competitive price
Packaging Details: Wooden case, carton, film
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Loading Capacity: 1000kg Hoist Power: 2 X 2.2kw
Platform Size: 7500 X 690 X 1300mm Lifting Speed: 8-10 M/min
Max.lifting Height: 300m Diameter Of Steel Wire: 8.6mm/9.1mm
High Light:

elevating work platforms

,

Aerial Work Platform





ZLP1000 2.5m * 3 Sections , Hoist 2.2kw Suspended Platform Cradle For Curtain Wall Decoration





Quick Details:



1. Model No.: ZLP1000

2. Brand Name: HAOKE

3. Material: Steel / Aluminum

4. Appearance: Plastic Spray Painted / Hot Galvanized

5. Capacity Loading: 1000 KG

6. Lifting Height: Maximum 300 Mts

7. Voltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ

8. Diameter of steel rope: 8.6mm





Applications:



1.Cleaning and maintaining of the exterior wall of high-rise building.

2.Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.



Specifications:



Model No. ZLP1000
Rated load(kg) 1000
Lifting speed(m/min) 8~10
Motor power(kw) 2×2.2, 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending Platform Locking Aluminum alloy
  Nr.Of platform rack Single rack
  Nr.Of platform 3
  L×W×H(mm) (2500×3)×690×1180
  Weight(kg) 455 Kg
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×44pcs
Diameter of steel rope(mm) 8.6
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES 220V/380V/415V (customized)







Competitive advantages:



1.Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;

Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.



300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 0







Our factory:



300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 1



300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 2



300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 3

300M Steel / Aluminum Suspended Access Platforms ZLP1000 For Dams / Large Chimneys 4
