Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3

China Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3 supplier

Large Image :  Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3

Product Details:

Place of Origin: SHNDONG, CHINA
Brand Name: HAOKE
Certification: ISO, CE
Model Number: ZLP630

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: competitive price
Packaging Details: Wooden case, carton, film
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Platform Size: 6000 X 690 X 1300mm Hoist Power: 2 X 1.5kw
Color: Silver, Red, Yellow, Black (can Be Customized) Voltage: 220v/440v/415v, 50/60Hz, Sinigle Phase Or 3 Phases
Diameter Of Steel Wire: 8.3mm Counter Weight: Concrete, Concrete With Steel Cover, Iron-casting





Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3 For Window Cleaning



Our factory:



Haoke Building Machinery Equipment Co., Ltd. is founded in 2005. It is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspended

Platform, building hoist and other various kinds of construction equipments. Our products with professional quality, competitive price and fast delivery. We can customized according to your requirements.



Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3





Applications:



 1. Widely used in construction, decoration, cleaning an maintenance of high-rise buildings.

2. Used in install and maintenance for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintenance.

3. Also used in inspection and maintenance of large tanks, chimney stalk, reservoir dam, bridge and so on.





Specifications:



Property Model No. ZLP630
Rated load(kg) 630
Lifting speed(m/min) 9~11
Motor power(kw) 2×1.5 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending platform Locking Aluminum alloy
Nr.Of platform rack Single rack
Nr.Of platform 3
L×W×H(mm) (2000×3)×690×1180
Weight(kg) 375 Kg
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×36pcs
Diameter of steel rope(mm) 8.3
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES

220V/380V/415V

(customized)







Parts:

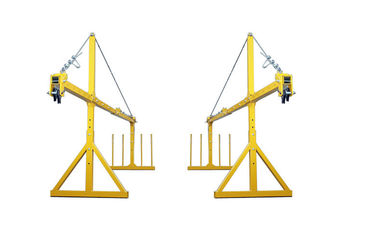

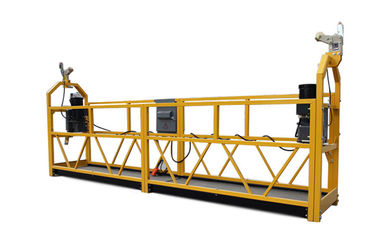

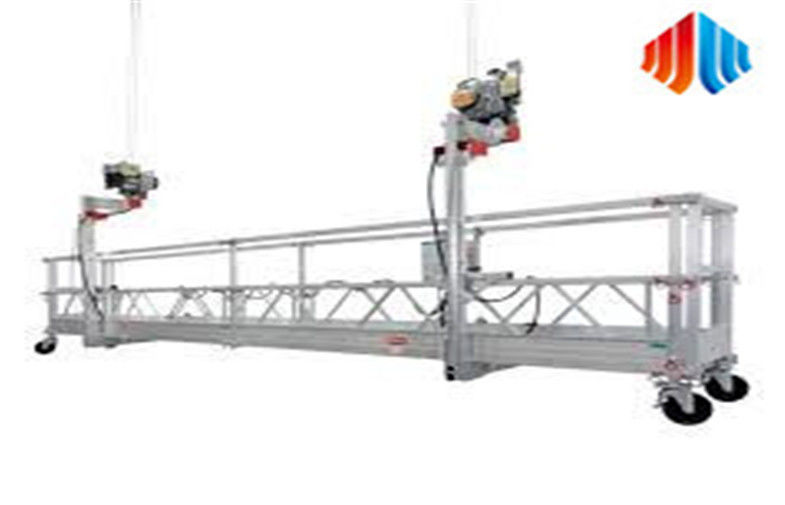

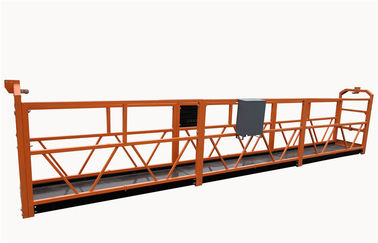

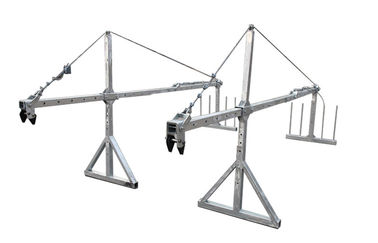

Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3





Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3



Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3



Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3



Temporarily Installed Suspended Platform Cradle ZLP630 With Hoist LTD6.3
