Window Cleaning Suspended Platform Cradle

Window Cleaning Suspended Platform Cradle
Window Cleaning Suspended Platform Cradle Window Cleaning Suspended Platform Cradle Window Cleaning Suspended Platform Cradle Window Cleaning Suspended Platform Cradle Window Cleaning Suspended Platform Cradle

Large Image :  Window Cleaning Suspended Platform Cradle Get Best Price

Product Details:
Place of Origin: SHANDONG, CHINA
Brand Name: HAOKE
Certification: ISO, CE, EAC
Model Number: ZLP630
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Wooden case, carton, film
Delivery Time: 7 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Product Name: 6 Meters Window Cleaning Suspended Platform Cradle ZLP630 With Good Quality Standard Length: 6m = 2m * 3 Sections
Valtage: 208V~415V Surface Treatment: Steel, Hot Galvanized, Aluminum Alloy
Power: 1.5kw * 2 Material: Steel, Aluminum
Rated Load: 630kg Guarantee: 1 Year
Certificates: CE, ISO, EAC Packing: Pallet, Wooden Case, Carton;container
High Light:

Aerial Work Platform

,

elevating work platforms





Power Suspended Platform Cradle ZLP630 With Hoist LTD6.3, 1.8kw For Window Cleaning



Quick Detail:



1. Model No.: ZLP630

2. Brand Name: HAOKE

3. Material: Steel / Aluminum

4. Appearance: Plastic Spray Painted / Hot Galvanized

5. Capacity Loading: 630 KG

6. Lifting Height: Maximum 300 Mts

7. Counterweight: Concrete, Concrete with steel cover, Iron





Specifications:



Property Model No. ZLP630
Rated load(kg) 630
Lifting speed(m/min) 9~11
Motor power(kw) 2×1.5 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending platform Locking Aluminum alloy
Nr.Of platform rack Single rack
Nr.Of platform 3
L×W×H(mm) (2000×3)×690×1180
Weight(kg) 375 Kg
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×36pcs
Diameter of steel rope(mm) 8.3
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES

220V/380V/415V (customized)







Competitive advantages:



1. Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist; Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;Good-quality steel wire rope, safety rope and cable.



2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.

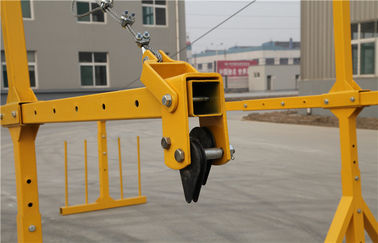

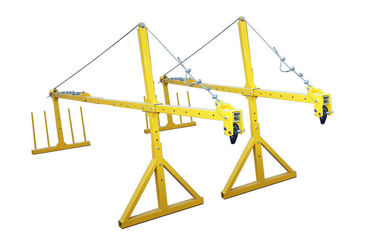

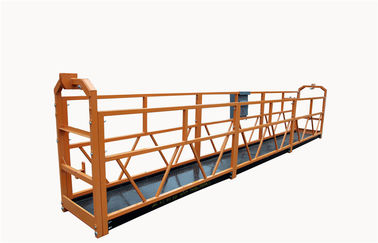

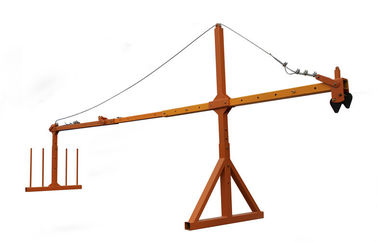

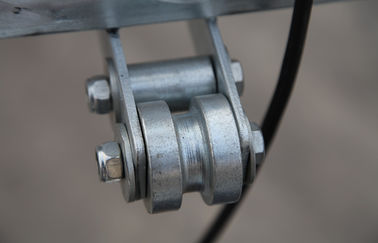

Components:



Window Cleaning Suspended Platform Cradle 0



Window Cleaning Suspended Platform Cradle 1





Our factory:



Haoke Machinery Equipment Co., Ltd. se fundó en 2005. Es una empresa líder de alta tecnología especializada en investigación, el desarrollo y fabricante de plataforma suspendida eléctrica, edificio elevador y otros varios tipos de equipos de construcción. Nuestros productos con calidad profesional, precio competitivo y entrega rápida. Podemos personalizar según sus requisitos.



Window Cleaning Suspended Platform Cradle 2

Window Cleaning Suspended Platform Cradle 3

Window Cleaning Suspended Platform Cradle 4



Window Cleaning Suspended Platform Cradle 5

Window Cleaning Suspended Platform Cradle 6
