P10 Full Color LED Sign / High Definition Commercial LED Display For Outside

P10 Full Color LED Sign / High Definition Commercial LED Display For Outside
P10 Full Color LED Sign / High Definition Commercial LED Display For Outside P10 Full Color LED Sign / High Definition Commercial LED Display For Outside P10 Full Color LED Sign / High Definition Commercial LED Display For Outside P10 Full Color LED Sign / High Definition Commercial LED Display For Outside

Large Image :  P10 Full Color LED Sign / High Definition Commercial LED Display For Outside Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ocolour
Certification: CE/RoHS/FCC/ETL/TUV
Model Number: OC-FA-P10DIP346
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Plywood cartons or flight case packaging
Delivery Time: 18-25 working days after received your payment
Payment Terms: 40% T/T as prepayment, 60% T/T as balance at factory
Supply Ability: 20000 sq.ft per month (2000㎡ per month)
Detailed Product Description
Pixel Pitch: 10 MM (0.39 Inch) Physical Density: 929 Dots/sq.ft (10000 Dots/sq.m)
Led Configuration: 1R1G1B Led Type: DIP346
Module Resolution: W 32 × H 16 Dots Brightness: >650 CD/sq.ft (7000 CD/sq.m)
Protection: Front IP65 And Rear IP54 Grey Scale: ≥ 960 Hz
High Light:

LED curtain display

,

industrial LED display

P10 Full Color LED Sign / High Definition Commercial LED Display For Outside

Quick Viewing:
A. Less than 1mm module plainness;
B. More than 5000hours meant time to failure;
C. Module pixel configuration of W 32 × H 16 dots;
D. Driving method is 1/4 can constant current;
E. Led lamp lifespan is more than 100000 hours;
F. More than 90% of pixel & module lightness uniformity;
G. Less than 1/ 10⁻⁴ of pixel out of control, dispersion state;
H. Module size is W 12.6 X H 6.3 inch (W 320 × H 160 mm);
I. 110 °Horizontal viewing angle and 55° vertical viewing angle;
J. Popular DIP346 led type, 1 red 1 green and 1 blue, traditional dip type led;
K. Physical density: 929dots per square feet (10000 dots per square meters).

Detailed Description:
1. With a perfect mixed color design and a rational design on the reflector and chip configuration, these outdoor LED displays have a uniform RGB color mixing performance and give audiences a realistic visual effect.
2. The optional light sensitive sensor allows the DIP LED advertising display to automatically adjust its brightness according to the environment, which makes it energy efficient and saves money. All the outdoor cabinets have passed washing, shower, and soak tests proving the outdoor LED display's IP65 protection class is true.
3. These outdoor LED displays have a special cabinet structure that can suit a variety of installation methods, including floor mounting, suspended installation, embedded installation, and column installation.
4. With a viewing angle up to 150°, the outdoor LED display can clearly display images without distortions or color cast at any angle within its viewing range.
5. The LED signs have a modular design and can achieve single point and single lamp maintenance, which eliminates difficult maintenance.

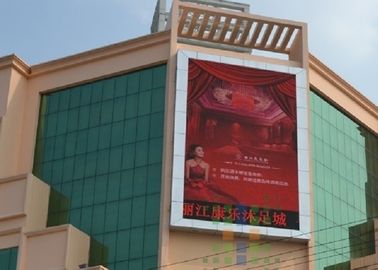

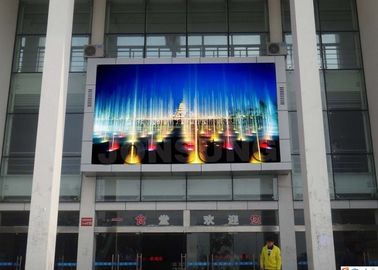

Popular Application:
Advertising media, sports stadiums, airport station integrated information dissemination, business establishments, public square and so on.

Specifications:

Item

Technical Parameters

Screen model

OC-FA-P10DIP

Led encapsulation

DIP346

Led configuration

1R1G1B

Pixel pitch(mm/inch)

10mm / 0.39 inch

Red chip

Wavelength range: 619-628nm, 5nm;
Brightness range:700-1000mcd

Green chip

Wavelength range: 461-470nm, 4nm;
Brightness range: 1400-1700mcd

Blue chip

Wavelength range: 522-531nm, 4nm;
Brightness range: 350-500mcd

Resolution

929dots/sq.ft (10000dots/㎡)

Maintenance

Front-maintained

Brightness: CD/sq.ft (CD/㎡)

>650CD/sq.ft (7000 CD/㎡)

Refreshing frequency: Hz

>960 Hz

Grey scale

14bit

Module pixel

W 32 × H 16 dots

Module size

W 12.60 X H 6.30 inch (W 320 × H 160 mm)

Viewing angle

Horizontal: 110°, Vertical: 55°

Cabinet material

Aluminum/steel

Lightness uniformity

Pixel & module>90%

Cabinet color

Customized

Driving method

1/4 scan constant current

Driving IC

MBI5041/MBI5024/JXI5020

Cabinet size

Cabinet size could be adjustable by demands

Power supply

85-264VAC, typical value: 110VAC/220VAC

Max consumption

Max.≤60.39W/sq.ft (650W/㎡)

Average consumption

Ave.: 20.07-30.19w/sq.ft(Ave.:216-325w/㎡)

Led life time

≥100000hours

Mean time to failure

≥5000hours

Module plainness

≤1mm

Pixel out of control

less than 1/ 10⁻⁴, dispersion state

Working temperature

-30ºC to +60ºC

Working humidity

20% to 90%

Waterproof IP

lamp & top:IP65, other part:IP54

Protection function

dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc

Certificate

CCC /CE/UL/Rohs/Tuv

Hardware interface

Standard PC network interface technology/U disc/3G

Display mode

24 bit true color

Colors

281 trillion colors

Colour processing ability

≥14bit

Color temperature

3000K ≤ TC ≤9000K, adjustable

Brightness regulating degrees

continuously adjustable step by step through the software

Anty-Y correction curve

Anti-γ correction system: 2.2-2.8 adjustable

Image adjust

White balance/contrasting / hue control/ Single point brightness adjustment

Image processing

mage noise reduction/ image enhancement/ image motion compensation/ Image color coordinate transformation processing/ Image passivation treatment

Correction technology

Yes

Video mode

AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV

Controlling platform

Windows, Apple IOS
