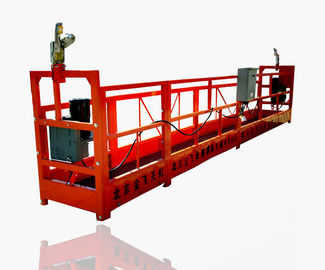

ZLP500 Electric Steel Climbing Suspended Working Platform, Building Aerial Work Platforms

ZLP500 Electric Steel Climbing Suspended Working Platform, Building Aerial Work Platforms
ZLP500 Electric Steel Climbing Suspended Working Platform, Building Aerial Work Platforms ZLP500 Electric Steel Climbing Suspended Working Platform, Building Aerial Work Platforms

Large Image :  ZLP500 Electric Steel Climbing Suspended Working Platform, Building Aerial Work Platforms Get Best Price

Product Details:
Place of Origin: Beijing
Brand Name: Jinfei Tianhong
Certification: CE,GOST,ISO9000:2000
Model Number: ZLP630
Detailed Product Description
High Light:

hanging platform

,

elevated working platform

,

aerial working platform


ZLP500 Electric Steel Climbing Suspended Working Platform, Building Aerial Work Platforms



Applications:

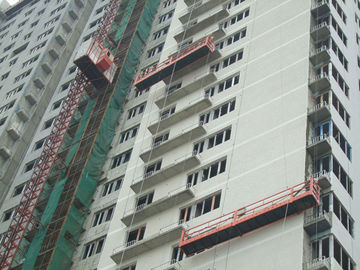

ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level mutil-storey buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges, dams etc.



Specifications:

Name

Technical parameter

Model

ZLP630

Rated load

630Kg

Lifting speed

8-10m/min

Platform DimensionL×W×H(mm)

6000(1+2+3m)×720×1300

Lifting Height

100 m

Cable

100m

Steel rope  (specially-made)

Ф8.3mm

Hoist

Power

1.5KW*2

Voltage

380V/50HZ

Safety lock

Permission force of impact

30KN

Locking Cable Angle

3°~8°

Suspension mechanism

Galvanized

Front beam overhang

1.3~.1.5m

Support adjustable height

1.44~2.14m

Counterweight

800KG

20’ft container

9 sets



















































Competitive Advantage:



Climing Principle- The suspended platform climbs up along the wire rope driven by the hoist. Without wraping up the wire rope, there is no limit on the height of climing in theory.

Hoist- Using the “α”structure, the reliability of the hoist is high, and the service life is long.

Safety rope and safety lock- Two safety ropes are set independently. The suspended platform is set with safety locks. When the platform goes acclivitous, the hoist system gets major faults or ropes are broken off and falling, the safety locks will lock the wire ropes to ensure the safety of the operator and the machine.

 Combination of the basket- According to customers’ requirements, the paltform can be combined in different forms and easy to transport.

 Multiple flexible suspension mechanism- The suspension mechanism is applicable to different types of roofs and conveniently to delivery.

 Convenient and reliable electrical control system- The electrical control system is equipped with protection switchs, operators can choose single- machine operation or two-machine operation system. It is equiped with movable operation box, external power box and the limit equipment against going up.

 Reasonable designed structure and Attractive appearance- The steel structure is applied with thin-wall and rectangle steel pipe, compact and rational designed.

Description:

ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level mutil-storey buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges, dams etc.

Applying this product can release scaffold free, reduce the costruction cost and the efficiency will be greatly increased. Mean while, the production is simple flexible, easy teansfer, easy to operate, safe and and reliable.
