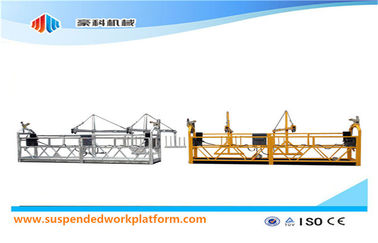

Construction Maintenance Rope Suspended Platform With Hoist LTD8.0 ZLP800

Construction Maintenance Rope Suspended Platform With Hoist LTD8.0 ZLP800
Construction Maintenance Rope Suspended Platform With Hoist LTD8.0 ZLP800 Construction Maintenance Rope Suspended Platform With Hoist LTD8.0 ZLP800 Construction Maintenance Rope Suspended Platform With Hoist LTD8.0 ZLP800 Construction Maintenance Rope Suspended Platform With Hoist LTD8.0 ZLP800 Construction Maintenance Rope Suspended Platform With Hoist LTD8.0 ZLP800

Large Image :  Construction Maintenance Rope Suspended Platform With Hoist LTD8.0 ZLP800 Get Best Price

Product Details:

Place of Origin: SHANDONG, CHINA
Brand Name: HAOKE
Certification: CE, ISO
Model Number: ZLP800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden case, Carton, Film
Delivery Time: 7 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 sets per month
Detailed Product Description
High Light:

suspended wire rope platform

,

gondola platform





800KG Safe Suspended Platform / Cradle / Gondola / Scaffolding ZLP800 With Hoist LTD8.0



Quick Detail:





1. Model No.: ZLP800

2. Brand Name: HAOKE

3. Material: Aluminum

4. Appearance: Aluminum

5. Capacity Loading: 800 KG

6. Lifting Height: Maximum 300 Mts







Description:



Electrical Suspended Platform ZLP800



Main Components: Platform, Suspension Mechanism, Hoist, Safety Lock, Electrical Control System, Steel Wire Rope, Cable, Safety Lock.

Length of Platform: 7.5M (2.5M*3SECTIONS) ---- can be customized
Hoist Power: 380V/220V/415V/440V, 50Hz/60Hz

Suspension Mechanism: Painted or Hot Galvanized

Safety Lock: LST30 (2 pcs per set)

Electrical Control System: inner parts with brand CHINT or SCHNEIDER

Steel Wire Rope: Ф8.6mm; 100mts/piece (totally 4 pieces)

Cable: 3*2.5+2*1.5, 100m/roll

Safety Rope: 100m/roll

Counter Weight: Cement, Cement with Steel Cover, Iron (3 kinds optional)









Applications:



1. Cleaning and maintaining of the exterior wall of high-rise building.

2. Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.







Specifications :





Property Model No. ZLP800
Rated load(kg) 800
Lifting speed(m/min) 8~10
Motor power(kw) 2×1.8 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending platform Locking Aluminum alloy
Nr.Of platform rack Single rack
Nr.Of platform 3
L×W×H(mm) (2500×3)×690×1180
Weight(kg) 410 Kg
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×40pcs
Diameter of steel rope(mm) 8.6
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES

220V/380V/

415V







Competitive advantages:





1. Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;

Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.
