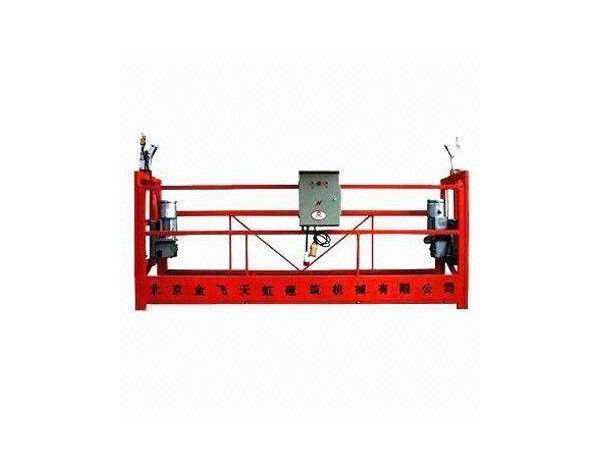

rope suspended platform ZIP630 ZIP800

rope suspended platform ZIP630 ZIP800
rope suspended platform ZIP630 ZIP800

Large Image :  rope suspended platform ZIP630 ZIP800 Get Best Price

Product Details:
Place of Origin: China
Brand Name: China Coal
Model Number: ZIP630 ZIP800
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: standard export packaging
Delivery Time: within 15 days
Payment Terms: T/T Paypal Western Union
Supply Ability: 100 per week
Detailed Product Description
High Light:

window cleaning equipment

,

rope suspended platform

,

rope suspended platform

Product Introduction:

(1) Platform
Platform is the working place, consist of high balustrade, low balustrade, bottom plate,

hoist mounting deck connected with bolt.
(2) Hoist mechanism

  • Hoist is the motor of suspended platform, adopted electric climbing principle.
  • Hoist is driven by electric regenerative braking and three phase asynchronous motor,
  • starting through turbine & worm and gear reducer, with steel rope climbing, hoist works
  • up and down following the rope, so keep the platform up and down.

(3) Safety lock
Safety lock is the protection equipment. When the platform goes acclivitous, or ropes

are broken off and falling, the safety locks will lock the wire ropes automatically and

quickly to ensure the safety of the operator from falling and inclining. The safety lock is

of swinging type.
(4) Suspension mechanism
Suspension mechanism is on the top of the building to suspend the platforms through

the steel rope.
(5) Electrical control system
Electrical Control System is used to control the movement of platforms, and the main

elements are fixed in insulated board, Universal Switch,Power Indicator, Start Button

and the Emergency Stop Button are in the door board of the box.



Main Parameter:

Name

Technical parameter

Model

ZLP800

ZLP630

Rated load

800Kg

630Kg

Lifting speed

8-10m/min

8-10m/min

Platform Dimension L×W×H(mm)

Spray plastics corrosion-resistant

7500(2.5m*3)×720×1300

6000(1+2+3m)×720×1300

Lifting Height

100 m

100 m

Cable

100 m

100 m

Steel rope (specially-made)

9.1mm

8.3mm

Hoist

Pulling power

7.84KN

6.17KN



electric motor

model

YEJ100L-4

YEJ90L-4





Power

1.8KW*2

1.5KW*2





Voltage

380V 50Hz

380V 50Hz





Rotational speed

1420rpm

1420rpm





Braking moment

15Nm

15Nm

Safety lock

Permission force of impact

30KN

30KN



Locking Cable Angle

3°~8°

3°~8°

Suspension mechanism

(Galvanized )

Front beam overhang

1.3~1.5m

1.3~1.5m



Support adjustable height

1.44~2.14m

1.44~2.14m

Counterweight

1000kg

800kg

20’ft container

8sets

9sets

40’ft container

13sets

14sets
