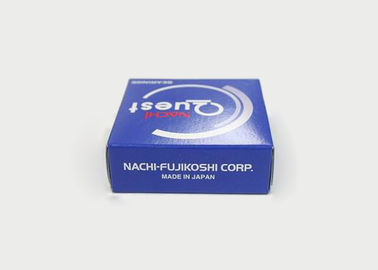

Bronze Cage NJ209M Nachi Cylindrical Roller Bearing Japan 45x85x19 13591 SEIKO TNT KOYO NACHI

NJ209M Nachi Cylindrical Roller Bearings Bronze Cage Made in Japan   NJ209M inner diameter is 40mm NJ209M outer diameter is 80mm NJ209M width is 18mm Item: NJ209M Cylindrical Roller Bearing Type: Nachi Cylindrical Roller Bearing Cage: Bronze Cage Dimensions: 45mm x 85mm x 19mm/Metric ID (inner diameter)/Bore: 45mm OD (outer diameter): 85mm Width/Height/thickness: 19mm Size: 45 x 85 x 19 mm Quantity: One Bearing Dynamic load rating Cr: 46,000 N Static load rating Cor: 47,000 N Limiting Speed: Grease Lubrication: 7,500 RPM Oil Lubrication: 9,000 RPM Pack#13591 Made in Japan

Nachi Cylindrical Roller Bearings

Construction of this roller bearing type is the simplest of all radial roller bearings.

This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity.

Various Cylindrical roller bearing configurations are:

N,NJ,NF,NU,RNU: integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
NN,NNU : double-row bearings

Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.

Pack#13591
