2000kg Steel Construction Hoists SC200 With Single / Twin Cage 3*1.5*2.5m

China 2000kg Steel Construction Hoists SC200 With Single / Twin Cage 3*1.5*2.5m supplier

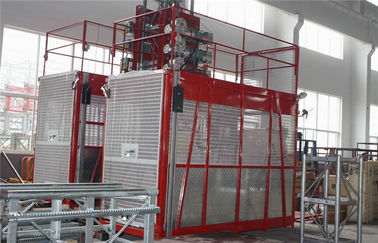

Large Image :  2000kg Steel Construction Hoists SC200 With Single / Twin Cage 3*1.5*2.5m

Product Details:

Place of Origin: BEIJING, CHINA
Brand Name: HAOKE
Certification: CE, ISO
Model Number: SC200, SC200/200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: 40-foot high container
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets per month
Detailed Product Description



Construction Building Site Hoist SC200 With Single Or Twin Cage 3 * 1.5 * 2.5 m



1. Model No.: SC200, SC200/200
2. Brand Name: HAOKE
3. Material: Steel
4. Appearance: Plastic Spray Painted / Hot Galvanized
5. Rating loading capacity: 2000
6. Max lifting Height: 150M
7. Size of the hoist cage: 3 x 1.5 x 2.5m



Description:

SC series construction elevator, adopt external setting meshing rack and pinion type design,rated load is 1T,

rated lifting height is 150m. Equipped with a national patent approved progressive safety device, can brake

automatically when falling situation occurs. And the drive system is on the top of the cage, reliable and easy

to operate and maintenance.The highest working lifting height can up to 300M. Construction Elevator is

widely used in Construction Projects, Such as industrial and residential building projects, bridge construction,

underground construction, large chimney construction buildings and shipping building industry and other

place.Which is a vertical transport equipment used for material and personnel as a permanent and temporary

elevator also van be used for warehouse and high towers buildings projects.







Main Parts:

  1.  Guide Rail Bracket
  2.  Drive Plate Assembly
  3.  Driver
  4.  Electric System
  5.  Breaker Mounting Plate
  6.  Falling Protector
  7.  Stop Block
  8.  Upper Distribution Box
  9.  Lifting Cage
  10.  Lower Distribution Box
  11.  Hoist’s Guard Rail
  12.  Cable Storage Tank
  13.  Cable Guide Bracket
  14.  Attachment Device
  15.  Cable Cantilever
  16.  Erection System
  17.  Pulley System







Advantages:



SC series building hoist adopted computer aided design. Comparing with traditional building hoists, it is

attractive, light, easy to handle, secure, applicable and popular. Depending on special needs of regular or

irregular sections, the lifting capacity can reach up to 1-2 tons, and the running speed can reach 28~38m/min.

Moreover, VVVF speed regulation and PLC enable 0-68 limitless speed, automatic layer selecting and

leveling as required. SC series building hoist is excellent in technical performance, more secure in operating

mechanism, and more compact in structure.






Technical Parameters:




Name

Unit

SC200

SC200/200

Rating loading capacity

Kg

2000

2×2000

Passenger number

Person

16

2×16

Rating rising rate

M/min

36

36

Max. promoting height

200

200

Motor power

KW

3×11

2×3×11

Voltage

V/ HZ

380/50

380/50

Cage size

3*1.5*2.5

3*1.5*2.5

650 mast section weight

Kg

128

150

650 mast section length

(painted)

0.65×0.65

×1.508

0.65×0.65

×1.508

Steeve rating rising weight

Kg

200

200

Containers for Shipment

pcs

1*40’HQ

1*40’HQ

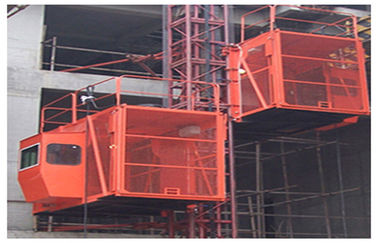

Projects:

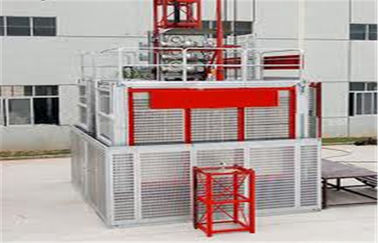

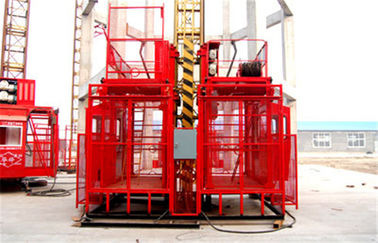

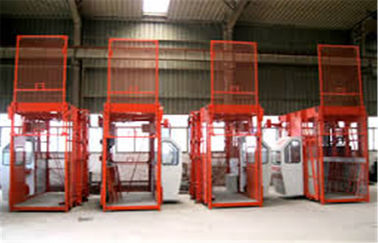

2000kg Steel Construction Hoists SC200 With Single / Twin Cage 3*1.5*2.5m

2000kg Steel Construction Hoists SC200 With Single / Twin Cage 3*1.5*2.5m
