Payment & Shipping Terms:
|Motor Power:||1.8KW||Voltage:||380V/415V/440V/220V, 50/60Hz (can Be Customized)|
|Color:||Silver, Red, Yellow, Black (can Be Customized)||Standard Length:||7.5M (can Be Customized)|
|Lifting Speed:||8-10 M/min||Rated Load:||800kg|
scaffold working platforms,
Window Cleaning Platform

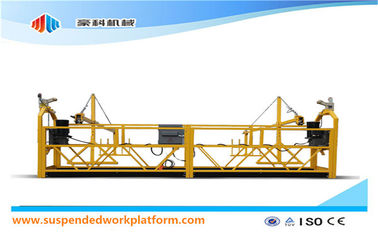

2.5 m * 3 Sections Temporarily Installed Access Equipment ZLP800 With Hoist 1.8 kw
1. Model No.: ZLP800
2. Brand Name: HAOKE
3. Material: Aluminum
4. Appearance: Aluminum
5. Capacity Loading: 800 KG
6. Lifting Height: Maximum 300 Mts
7. Voltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ
Main Components: Platform, Suspension Mechanism, Hoist, Safety Lock, Electrical Control System, Steel Wire Rope, Cable, Safety Lock.
Length of Platform: 7.5M (2.5M*3SECTIONS) ---- can be customized
Hoist Power: 380V/220V/415V/440V, 50Hz/60Hz
Suspension Mechanism: Painted or Hot Galvanized
Safety Lock: LST30 (2 pcs per set)
Electrical Control System: inner parts with brand CHINT or SCHNEIDER
Steel Wire Rope: Ф8.6mm; 100mts/piece (totally 4 pieces)
Cable: 3*2.5+2*1.5, 100m/roll
Safety Rope: 100m/roll
Counter Weight: Cement, Cement with Steel Cover, Iron (3 kinds optional)
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
|Property Model No.||ZLP800|
|Motor power(kw)||2×1.8 50HZ/60HZ|
|Steel rope angle adjusting range(°)||3°- 8°|
|Distance between two steel rope(mm)||≤100|
|Rated stretch of front beam(mm)||1500|
|Suspending platform||Locking||Aluminum alloy|
|Nr.Of platform rack||Single rack|
|Suspending mechanism(kg)||2×175 Kg|
|Diameter of steel rope(mm)||8.6|
|Max Lifting height(m)||300|
|Motor rotation speed(r/min)||1420|
1. Absolutely guarantee life safety during Aerial working
Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;
Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;
Good-quality steel wire rope, safety rope and cable.
2. Stable performance: raise up and lower down smoothly
3. Modular design. Easy to disassemble, assemble operate and maintain.
4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)
5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)
6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)
7. Professional quality, competitive price, fast delivery, good services.
