Product Details:
Payment & Shipping Terms:
|
Highlight: | scissor lift table |
---|

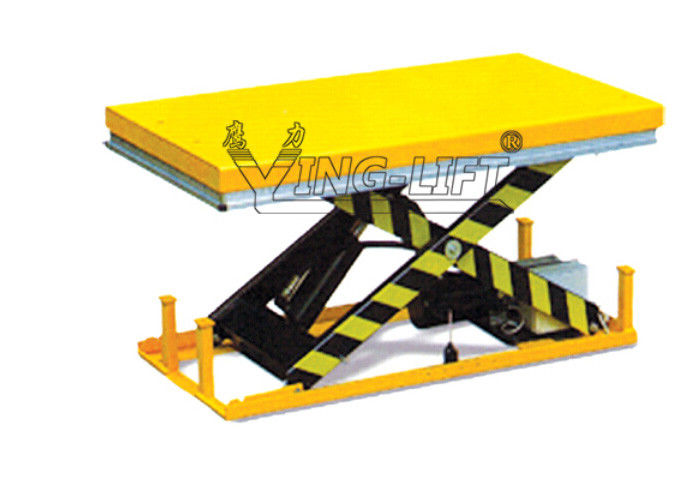

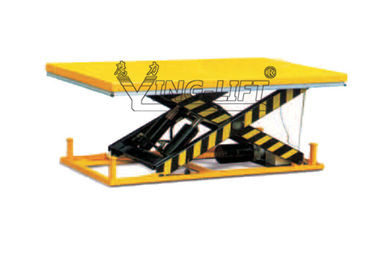

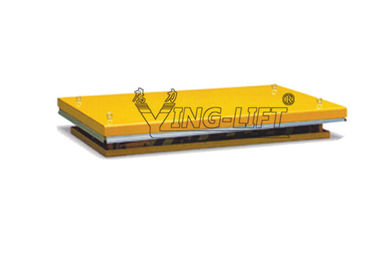

Heavy Duty Stationary Lift Table Electric Scissor For Pharmaceutical Industry
Description
Features Strong structure and steady performance, our YING-LIFT Heavy Duty Stationary Lift Table Electric Scissor Lift Table, Factory Direct Sale Stationary Electric Lift Table, 1000kg to 4000kg Capacity is suitable for being installed and used in the open air under various conditions. It can be fixed in sealed wells or open floors as well as concave shape ground holes or flat ground in accordance with use requirements. It is widely used to convey the goods from one working level to another.
Feature:
1. Heavy duty design 1000-4000kg;
2. Strong structure and steady performance;
2. High quality pump station is with smooth lifting feature;
3. with anti-pinch and overload protection function;
4. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed;
5. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions;
6. Emergency drop valve in case of power failure;
7. High intensity manganese steel scissors, not easy to be deformed;
Technical Data:
Model |
Capacity |
Platform Height Min/Max |
Platform Size |
Base Size |
Lift Time |
Battery |
Net Weight |
kg |
mm |
mm |
mm |
s |
V/HZ |
kg |
|
YLF1001 |
1000 |
205/990 |
1300*820 |
1240*640 |
20~25 |
380/50 |
160 |
YLF1002 |
1000 |
205/990 |
1600*1000 |
1240*640 |
20~25 |
380/50 |
186 |
YLF1003 |
1000 |
240/1300 |
1700*850 |
1580*640 |
30~35 |
380/50 |
200 |
YLF1004 |
1000 |
240/1300 |
1700*1000 |
1580*640 |
30~35 |
380/50 |
210 |
YLF1005 |
1000 |
240/1300 |
2000*850 |
1580*640 |
30~35 |
380/50 |
212 |
YLF1006 |
1000 |
240/1300 |
2000*1000 |
1580*640 |
30~35 |
380/50 |
223 |
YLF1007 |
1000 |
240/1300 |
1700*1500 |
1580*1320 |
30~40 |
380/50 |
365 |
YLF1008 |
1000 |
240/1300 |
2000*1700 |
1580*1320 |
30~40 |
380/50 |
430 |
YLF2001 |
2000 |
230/1000 |
1300*850 |
1220*785 |
20~25 |
380/50 |
235 |
YLF2002 |
2000 |
230/1000 |
1600*1000 |
1220*785 |
20~25 |
380/50 |
268 |
YLF2003 |
2000 |
250/1300 |
1700*850 |
1600*785 |
25~35 |
380/50 |
289 |
YLF2004 |
2000 |
250/1300 |
1700*1000 |
1600*785 |
25~35 |
380/50 |
300 |
YLF2005 |
2000 |
250/1300 |
2000*850 |
1600*785 |
25~35 |
380/50 |
300 |
YLF2006 |
2000 |
250/1300 |
2000*1000 |
1600*785 |
25~35 |
380/50 |
315 |
YLF2007 |
2000 |
250/1300 |
1700*1500 |
1600*1435 |
25~35 |
380/50 |
415 |
YLF2008 |
2000 |
250/1400 |
2000*1800 |
1600*1435 |
25~35 |
380/50 |
500 |
YLF4001 |
4000 |
250/1400 |
1700*1200 |
1600*900 |
30~40 |
380/50 |
375 |
YLF4002 |
4000 |
240/1050 |
2000*1200 |
1600*900 |
30~40 |
380/50 |
405 |
YLF4003 |
4000 |
240/1050 |
2000*1000 |
1980*900 |
30~40 |
380/50 |
470 |
YLF4004 |
4000 |
300/1400 |
2000*1200 |
1980*900 |
35~40 |
380/50 |
490 |
YLF4005 |
4000 |
300/1400 |
2200*1000 |
1980*900 |
35~40 |
380/50 |
480 |
YLF4006 |
4000 |
300/1400 |
2200*1200 |
1980*900 |
35~40 |
380/50 |
505 |
YLF4007 |
4000 |
300/1400 |
1700*1500 |
1620*1400 |
35~45 |
380/50 |
570 |
YLF4008 |
4000 |
300/1400 |
2200*1800 |
1620*1400 |
35~45 |
380/50 |
655 |
Applications
1. Stationary hydraulic cargo lift is a professional hydraulic lift table for transporting goods among layers of constructions. It is mainly used to carry goods between various working layers; auto lifting between layer heights of three-dimensional garage and underground garage, etc.
2. Mainly used for industrial and mining enterprises and the pharmaceutical industry, the production lines of the logistics industry, in other industries as the service elevator to the movement of goods, lifting, loading and unloading of goods between the basement to the floor
Competitive Advantage
Hydraulic system of our products is set safety protection equipment to fall protect and overload, and it also can realize multiple-point control, for both floor and the table-board of lift table can set operation buttons. Besides, its solid structure, heavy load, stable lifting as well as simple and convenient installation and maintenance, it is the ideal goods transportation equipment which can substitute elevator between floors with low cost. Choose different collocations according to various installation environments and use requirements of lift tables to receive better effect.
