Key Word: | Suspended Platform | Model Number: | ZLP630 |
---|---|---|---|
Power: | 1.5kw | Color: | Red,Yellow,Blue,etc |
Rated Loading Capacity: | 630kg | Max. Lifting Height: | 100m |
Highlight: | building hoist |
630kg Steel Construction Material Lift Adjustable Height Zlp630
Our suspended working platform can be widely used parapet and complicated building in different height.And we can also supply customized platform to meet different requirements from customers.
Product specifications
Model |
ZLP250 |
ZLP500 |
ZLP630 |
ZLP800A |
ZLP800S |
Material |
Steel or Aluminum Alloy |
||||
Rated Capacity(kg) |
250 |
500 |
630 |
800 |
800 |
Lifting Speed (m/min) |
9-11 |
9-11 |
9-11 |
8-10 |
8-10 |
Motor Power (kw) |
LTD5 |
LTD5 |
LTD6.3 |
LTD8 |
LTD8 |
Platform Length (m) |
2.5 |
5 |
6 |
7.5 |
7.5 |
Counterweights (kg) |
625 |
750 |
900 |
1000 |
1000 |
Diameter of Wire rope (mm) |
8.3 |
8.3 |
8.3 |
9.1 |
9.1 |
Standard lifting height (m) |
100 |
100 |
100 |
100 |
100 |
Quick Details
Products Specifications
Suspended Gondola / Cradle / Stage
1. Antitilt safety device
2. Emergency stop device
3. Over-speed limit
4. Manual descend
5. Antitilt safety device
6. Stop device
7. Over-speed limit
8. Manual descend
9. Adjustable working height
10. Length of platform can be adjusted
11. Security devices are used like steel wire rope, safety rope, security lock etc, to ensure the safety of the product, and greatly reduces some accident.
12. Suspension power Working Platform is a temporary, flexible high access equipment for maintenance and construction work. distinguished from permanent access equipment. It can be disassembled conveniently.It compared with traditional scaffolding,can save labours and time to maintain the high bulidings, such as industry workshop, water tower, bridge, TV tower, big chimney, cenotaph,dam,etc..
Besides, Suspension Working Platform can be used to lift specific weight.In a word, Suspension Working Platform is a good helper for construciton and decoration of high buildings.
Breif introduction
The ZLP series powered Suspended Gondola / Cradle / Stage is one new type construction machine.
It is a substitute of traditional scaffold used for exterior construction, decoration, cleaning and maintenance of high rise building, and is also ideal for applications such as the welding of seagoing ship in shipbuilding industry, cleaning of oil-based paint, installation of elevators, big-size tanks and high chimneys, construction of reservoir dams, and inspection, cleaning and repair of bridges.
Parts contains

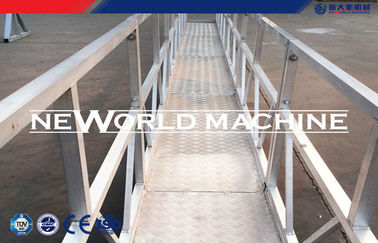

1. Suspended Cage: Steel or Aluminum Alloy (powder coating or hot galvanization)
2. Suspension Mechanism: Steel (powder coating or hot galvanization)
3. Electric hoists: LTD6.3 or LTD8
4. Safety Lock: LSF30
5. Electric control box: Schneider brand
6. Steel wire rope: 8.3mm or 9.1mm
7. Power cable: 2.5 mm²
8. Counterweights: Cement or Cast Iron
9. Spare parts
Features
Application

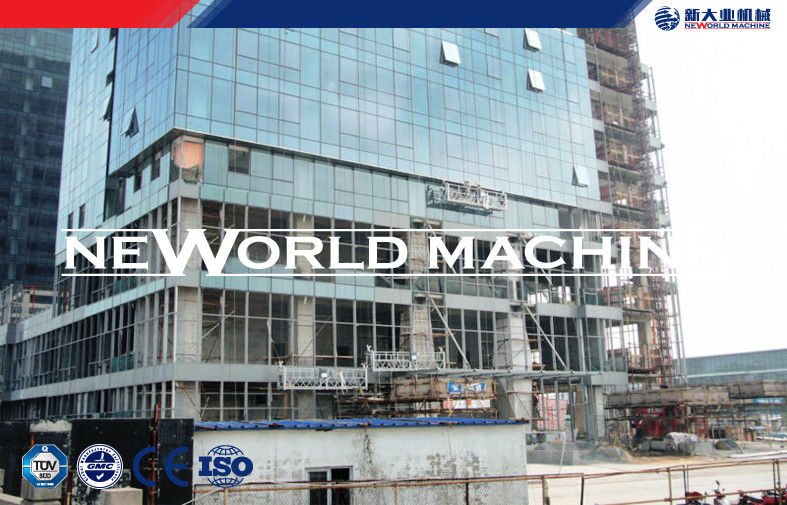

1. High-rise building: Decoration, construction for external wall, installation of curtain wall and external components, repairing, checking, maintenance and cleaning for external wall
2. Large-scale project: construction, repairing and maintenance for large tank, chimney, dams, bridges, derrick
3. Large ships: welding, cleaning and painting
4. billboard: installation billboard for high-rise building

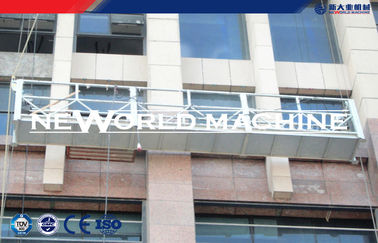

Product shows
