Zlp800 Steel Suspended Work Platform Safety For High Building Wall
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Key Word: | Construction Hoist Elevator | Rated Loading Capacity: | 800kg |
|---|---|---|---|
| Max Lifting Height: | 100m | Table Size: | 7500*690*1180mm |
| Weight: | 2000kg | Actuation: | Electric Motor |
| Highlight: | suspended work platform |
||
Zlp800 Steel Suspended Work Platform Safety For High Building Wall
Quick Details
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: NEWORLD
- Model Number: ZLP800
- Lift Mechanism: Electric
- Lift Drive / Actuation: Electric Motor
- Power: 1.5kw, 1.8kw, 2kw
- Rated Loading Capacity: 500kg, 630kg, 800kg, 1000kg
- Min. Lifting Height: 0m
- Max. Lifting Height: 120m
- Table Size: 7500*690*1180mm
- Overall Dimensions: 3CBM
- Weight: 2000kg
- Certification: ISO, CE
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Material: Steel, Aluminum Alloy
- Color: Red, Yellow, Blue, etc
- Surface treatment: Powder coating, Hot galvanization
- Length: 2m, 2.5m, 3m, 5m, 6m, 7.5m, etc
- Lifing Mechanism: Gear
- Lift Drive/Actuation: Electric Motor
- Voltage: Mast Aerial Work Lift / Suspended Platform accept different voltages
Parameters of Suspended Gondola / Cradle / Stage
|
Model |
ZLP250 |
ZLP500 |
ZLP630 |
ZLP800A |
ZLP800S |
|
Material |
Steel or Aluminum Alloy |
||||
|
Rated Capacity(kg) |
250 |
500 |
630 |
800 |
800 |
|
Lifting Speed (m/min) |
9-11 |
9-11 |
9-11 |
8-10 |
8-10 |
|
Motor Power (kw) |
LTD5 |
LTD5 |
LTD6.3 |
LTD8 |
LTD8 |
|
Platform Length (m) |
2.5 |
5 |
6 |
7.5 |
7.5 |
|
Counterweights (kg) |
625 |
750 |
900 |
1000 |
1000 |
|
Diameter of Wire rope (mm) |
8.3 |
8.3 |
8.3 |
8.6 |
8.6 |
|
Standard lifting height (m) |
100 |
100 |
100 |
100 |
100 |
Applications
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Breif introduction
1. Our company is the production base and research centre of exporting ZLP800 Mast Aerial Work Lift / Suspended Platform, CE Qualification in China.
2.Application: High rise elevator, cableway installation, granary, security inspection, tower hoist driver's lift, boiler maintenance, dam and bridge maintenance and so on.
3. Counterweight: 300KG-1000KG
Lifting speed: 9-11m/min
Lifting height: 100m
Voltage: 220V, 380V, 415V, 440V, etc
Phase: Single phase or Three phases
Frequency: 50HZ or 60HZ
Our Services
1 - One year warranty for whole machines.
2 - Providing free quick-wear part.
3 - Low charge for continue maintenance when warranty is expired.
4 - Exclusive engineer support at any time.
5 - free training to end-users.
6 - 24 hours online service and support
Parts contains
1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)
2. Suspension Mechanism: Steel (plastic coating or hot galvanization)
3. Electric hoists: LTD5, LTD6.3 or LTD8
4. Safety Lock: LSB30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm-9.1mm
7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²
8. Counterweights: Cement or Cast Iron
9. Spare parts

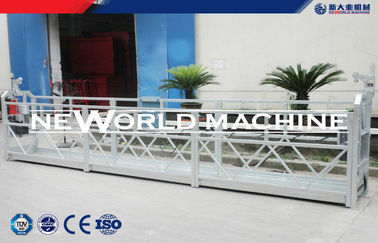

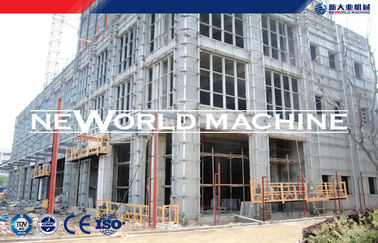

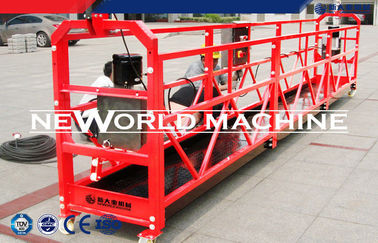

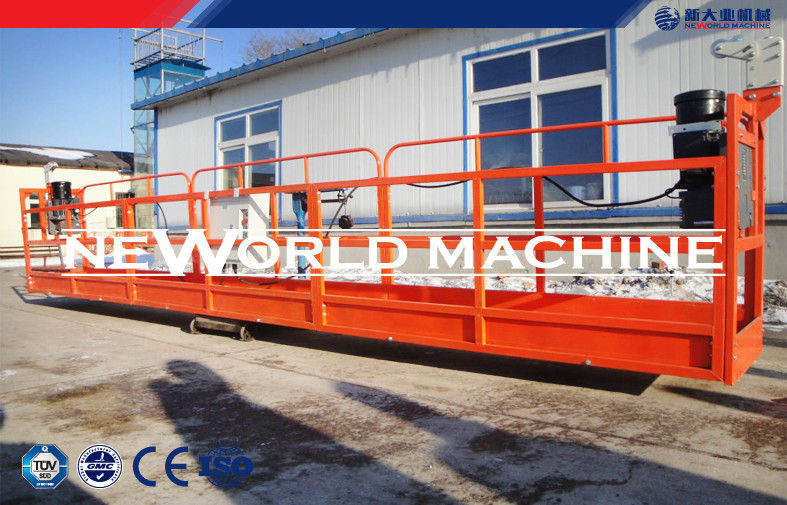

Product shows
