High building elevating work platforms 6m 1.5kw 630kg With Iron Counter

High building elevating work platforms 6m 1.5kw 630kg With Iron Counter
High building elevating work platforms 6m 1.5kw 630kg With Iron Counter High building elevating work platforms 6m 1.5kw 630kg With Iron Counter High building elevating work platforms 6m 1.5kw 630kg With Iron Counter High building elevating work platforms 6m 1.5kw 630kg With Iron Counter High building elevating work platforms 6m 1.5kw 630kg With Iron Counter

Large Image :  High building elevating work platforms 6m 1.5kw 630kg With Iron Counter Get Best Price

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: HAOKE
Certification: CE, ISO
Model Number: ZLP630
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: competitive price
Packaging Details: Wooden case, carton, pallet
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Motor Power: 2 X 1.5kw, 50/60Hz Material: Steel / Aluminum Alloy
Lifting Speed: 9~11 M/min Diameter Of Steel Rope: 8.3mm
Appearance: Steel / Hot Galvanized / Aluminum Alloy Motor Rotation Speed: 1420 R/min
High Light:

elevating work platforms

,

swing stage scaffold





High building elevating work platforms 6m 1.5kw 630kg With Iron Counter





Description:





Quick Detail:



1. Model No.: ZLP630

2. Brand Name: HAOKE

3. Material: Steel / Aluminum

4. Appearance: Steel / Hot Galvanized / Aluminum

5. Capacity Loading: 630 KG

6. Lifting Height: Maximum 300 Mts

7. Counterweight: Concrete, Concrete with steel cover, Iron







Applications:



1. Cleaning and maintaining of the exterior wall of high-rise building.

2. Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintenance.







Technical Parameters:



Property Model No. ZLP630
Rated load(kg) 630
Lifting speed(m/min) 9~11
Motor power(kw) 2×1.5 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending platform Locking Aluminum alloy
Nr.Of platform rack Single rack
Nr.Of platform 3
L×W×H(mm) (2000×3)×690×1180
Weight(kg) 375 Kg
Suspending mechanism(kg) 2×175 Kg

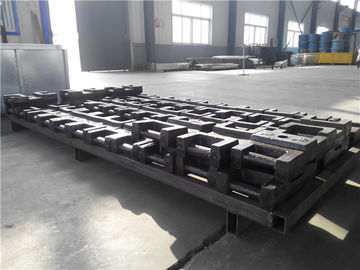

Counterweight(kg) optional 25×36pcs
Diameter of steel rope(mm) 8.3
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES / SINGLE PHASE

220V/380V/415V,50/60Hz (customized)



High building elevating work platforms 6m 1.5kw 630kg With Iron Counter 0









Competitive advantages:





1. Absolutely guarantee life safety during Aerial working

Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;

Good-quality steel wire rope, safety rope and cable.

2. Stable performance: raise up and lower down smoothly

3. Modular design. Easy to disassemble, assemble operate and maintain.

4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)

5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)

7. Professional quality, competitive price, fast delivery, good services.









High building elevating work platforms 6m 1.5kw 630kg With Iron Counter 1

High building elevating work platforms 6m 1.5kw 630kg With Iron Counter 2
