|Material:||Steel / Aluminum Alloy||Rated Load:||500kg,630kg,800kg,1000kg|
|Motor Power:||2 X1.5kw, 2 X 1.8kw, 2 X 2.2kw||Motor Rotation Speed:||1420r/min|
|Voltage:||380V/415V/440V/220V, 50/60Hz (can Be Customized)||Diameter Of Steel Wire:||8.3mm,8.6mm,9.1mm|
elevating work platforms,
swing stage scaffold

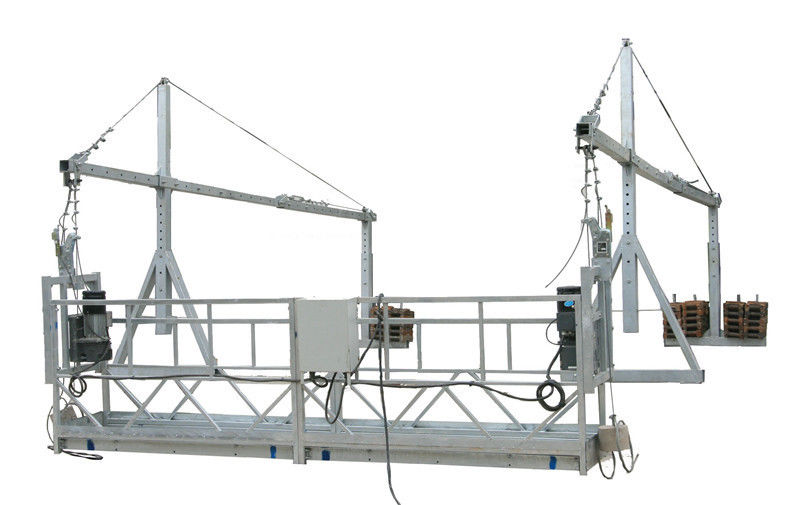

Durable Suspended Platform Cradle ZLP500 , ZLP630 , ZLP800 , ZLP1000 For Construction
1.Cleaning and maintaining of the exterior wall of high-rise building.
2.Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
|Property Model No.||ZLP500||ZLP630||ZLP800||ZLP1000|
|Motor power(kw)||2×1.5 50HZ/60HZ||2×1.5 50HZ/60HZ||2×1.8 50HZ/60HZ||
|Steel rope angle adjusting range(°)||3°- 8°||3°- 8°||3°- 8°||3°- 8°|
|Distance between two steel rope(mm)||≤100||≤100||≤100||≤100|
|Rated stretch of front beam(mm)||1500||1500||1500||1500|
|Suspending platform||Locking||Aluminum alloy||Aluminum alloy||Aluminum alloy||Aluminum alloy|
|Nr.Of platform rack||Single rack||Single rack||Single rack||Single rack|
|Weight(kg)||350 Kg||375 Kg||410 Kg||455kg|
|Suspending mechanism(kg)||2×175 Kg||2×175 Kg||2×175 Kg||2×175 Kg|
|Diameter of steel rope(mm)||8.3||8.3||8.6||8.6|
|Max Lifting height(m)||300||300||300||300|
|Motor rotation speed(r/min)||1420||1420||1420||1420|
1. Absolutely guarantee life safety during Aerial working
Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;
Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;
Good-quality steel wire rope, safety rope and cable.
2. Stable performance: raise up and lower down smoothly
3. Modular design. Easy to disassemble, assemble operate and maintain.
4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)
5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)
6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)
7. Professional quality, competitive price, fast delivery, good services.
