High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ

High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ
High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ

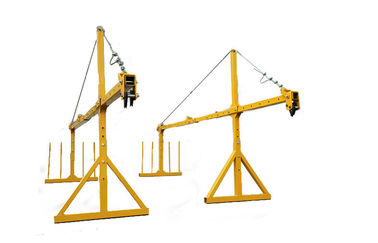

Large Image :  High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ Get Best Price

Product Details:
Place of Origin: SHANDONG, CHINA
Brand Name: HAOKE
Certification: ISO, CE
Model Number: ZLP1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: competitive price
Packaging Details: Wooden case, Carton, Film
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
Rated Load: 1000kg Platform Size: 7500 X 690 X 1300mm
Hoist Power: 2 X 2.2kw Diameter Of Steel Wire: 9.1mm
Motor Rotation Speed: 1420r/min Counter Weight: Concrete, Concrete With Steel Cover, Iron-casting
High Light:

elevating work platforms

,

Aerial Work Platform





ZLP1000 2.5m * 3 Sections , 380V / 50HZ Suspended Platform Cradle With Hoist 2.2kw For Cleaning







Quick Detail:



1. Model No.: ZLP1000

2. Brand Name: HAOKE

3. Material: Steel / Aluminum

4. Appearance: Plastic Spray Painted / Hot Galvanized

5. Capacity Loading: 1000 KG

6. Lifting Height: Maximum 300 Mts

7. Counterweight: Concrete, Concrete with steel cover, Iron

8. Vltage: 220V,380V,400V,415V,440V ,3-phase.50HZ/60HZ (can be customized)

9. Safety Rope Diameter: 18mm, 20mm



Applications:



1.Cleaning and maintaining of the exterior wall of high-rise building.

2.Painting, decoration and refurbishing of exterior walls.

3. Installation projects and other construction working of outer walls of high-rise building.

4. Aerial working of ship, large tower, bridge, dams and large chimneys.

5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.



Specifications:



Model No. ZLP1000
Rated load(kg) 1000
Lifting speed(m/min) 8~10
Motor power(kw) 2×2.2, 50HZ/60HZ
Brake torque(Km) 16
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1500
Suspending Platform Locking Aluminum alloy
  Nr.Of platform rack Single rack
  Nr.Of platform 3
  L×W×H(mm) (2500×3)×690×1180
  Weight(kg) 455 Kg
Suspending mechanism(kg) 2×175 Kg
Counterweight(kg) optional 25×44pcs
Diameter of steel rope(mm) 8.6
Max Lifting height(m) 300
Motor rotation speed(r/min) 1420
Voltage(v) 3PHASES 220V/380V/415V (customized)







Our advantages:



1. Professional quality: we have 9 years experience of making suspended working platforms in China.

2. Competitive price: we can do you a favor based on our factory status especially for big quantity.

3. Fast delivery: our monthly stock more than 1000 sets.

4. Considerate service: our excellent sales team keep the whole day email contact and 24 hours TradeManager online. Engineers keep prompt reply for any questions.

5. We can customized the platform including parts according to your requirements.





Components:



High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ 0





Our factory:



High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ 1

High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ 2

High Rise Building Suspended Platform Cradle Swing Stage Scaffold ZLP1000 380V / 50HZ 3
