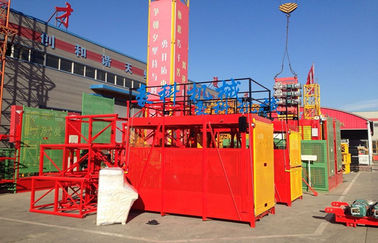

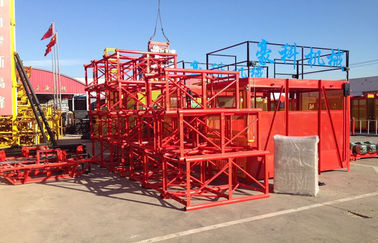

Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m

Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m
Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m

Large Image :  Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m Get Best Price

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: HAOKE
Certification: CE, ISO
Model Number: SS100, SS100/100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 40-foot high container
Delivery Time: within 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per month
Detailed Product Description
Color: Red, Yellow Attachment Installation Height: 70
Rated Lifting Capacity: 1000/1000 Lifting Speed: 23.5m / Min
Section Dimension Of Bracket: 0.8 X 0.8 X 1.5 M
High Light:

construction hoist elevator

,

Building Site Hoist

Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m







Description:



SS100/100 Material Hoist is a vertical handling machine dedicated for materials widely applied in building

construction, industrial and mining, multistorey workshop, warehouse, station, wharf, etc. It is convenient,

efficient, and secure. SS100/100 is set up with safety multiple protection measures like Floor-selecting and  Leveling Device, Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper and

Lower Height Restrictor, Anti Rope-breaking Equipment, among which, the brake performance and brake

slide distance of the Rope Protector are above national standards. It is safe, reliable, and harmless to

rail-track.




There are two accesses for Floor Selecting and Leveling:
1. Manual Control, which is direct control by the operator.

2. Computer Automatic Positioning System (Optional for order), which can easily realize floor-selecting and leveling without manual stop or point car leveling, reducing the difficulty of manipulation,

convenient and precise.

3. SS100/100 adopts Wall-attaching Device instead of Wind Rope, along with self-erection and

dismantling unit (Derrick), easy for handling and transportation.



SS100/100 has 2 types: Single-caged and Double-caged, optional for users.  The standard sections of Double-caged are 4 pieces of ø76 * 4 seamless steel pipes, which can also be

taken as guide rail, while those the Single-caged are 2 ø51 * 4 pipes.







Characteristics:



Secure and visible control center for SS100/100 material hoist
Four hot selling point
SS100/100 secure and visible control center is a new designed product according to the construction

industry special requirement,which adopt the latest computer chip technology, Compared with the

previous generation products,its function,safety and usability and stability have been greatly improved.


●High Security
1.Overload protection 2. Losting-phase protection
3.Safety door protection 4. Interlayer door protection
5. Motor reversal protection 6. Mechanical crash roof protecton
7.Sensor fault protection 8.Motor cutting-out or overload protection.
9. Alarm bell output protection 10.Data protection


●Advanced control performance
1. Four rope machinery prepare for leveling
2. Straight type function setting
3. Direct-reading height Electronic Ruler
4. Automatic identification floor
5. Built-in interphone
6. Intellectualized correction deflection function
7. Automatic resetting target floor function
8. Simplicity of operation
9.Computer tips function
10. Password Protection Function


●Reliable,durable and easy to maintenance
1.Fast maintenance
2.High reliable manual function
3.Dust proof
4.Anti-jamming
●Perfectly control







Specifications:



Technical Parameter

Item

Unit

Parameter

Basic Installation Height

m

24

Attachment Installation Height

m

70

Rated Lifting Capacity

kg

1000/1000

Lifting Speed

m/min

23.5

Cage Dimension (L*W*H)

m

2.8 * 1.5 * 1.9

Sectional Dimension Of Bracket

m

0.8 * 0.8

Motor Power

Kw

Single-cage 7.5;

Double-cage 15;

Steel Rope Model



6 *37+1-12-170-Right

Steel Rope Length (Typical)

m

150

Total Weight

Single-cage (at 30m)

3860



Double-cage (at 30m)

5280







Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m 0 Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m 1 Vertical Construction Material Hoist SS100/100 With Cage 2.8 x 1.5 x 1.9 m 2
