Product Details:
Payment & Shipping Terms:
|
| Design: | Side Magnetic Braking Device | Load Capacity: | 0.5-5T |
|---|---|---|---|
| Lifting Height: | 3M | Chain: | The Chain Shall Adopt The Imported FEC80 Ultra Heat-treatable Aluminum Alloy Chain |
| Price: | Negotiation | Certificate: | CE |
| High Light: | portable lifting equipment,industrial lifting devices |
||

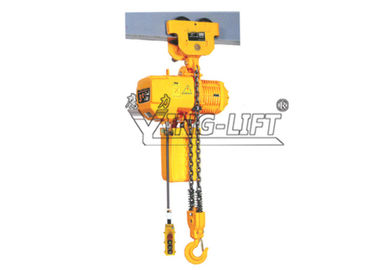

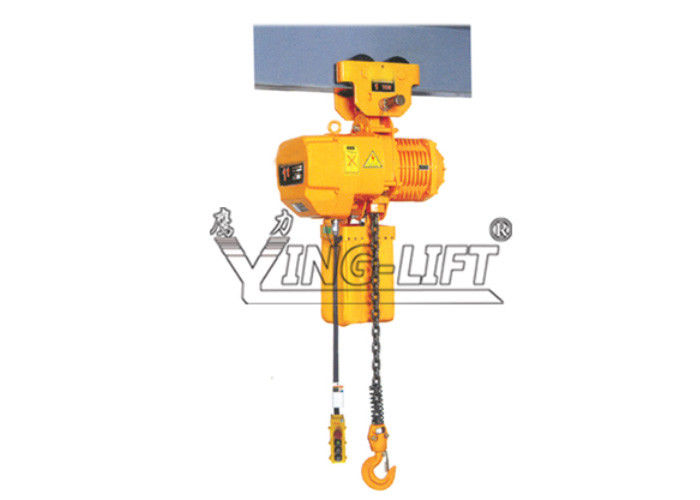

Manual Trolley Electric Lifting Crane Yellow 0.5T - 5T 24V / 36V
Description
With a plain trolley coupled with our YING-LIFT Manual Trolley Type Electric Chain Hoist two-speed electric chain hoist, this model chain hoist allows an operator to manually push the load in a traversing direction. While available at an affordable price, it is capable of performing pinpoint positioning through two-speed lifting.
Overhead hoists are defined in the ANSI/ASME standards as a machinery unit that is used for vertical lifting service involving material handling of freely suspended (unguided) loads. Overhead hoists are a basic and versatile piece of equipment used in manufacturing, warehousing, construction and numerous other applications to aid workers in the handling and moving of loads.
Feature
Limit switch:
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety;
24V/36V device: It is used to prohibit the emergencies from occurring in case of the leakage in the switch;
Side magnetic braking device:
This device shall realize the instant brake in case of the power dump;
Chain bag: It shall be light, handsome and durable;
Chain: The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain;
Shell:
Light aluminum alloy shell shall be adopted, which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design;
Inverse phase sequence protecting device:
It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply;
Technical Data
|
Model |
YLM05SM |
YLM10SM |
YLM15SM |
YLM20SM |
YLM25SM |
YLM30SE |
YLM50SE |
||
|
Capacity |
T |
0.5 |
1 |
1.5 |
2 |
2.5 |
3 |
5 |
|
|
Standard lifting height |
m |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Lifting speed |
m/min |
6.8 |
6.6 |
8.8 |
6.6 |
5.4 |
5.4 |
2.7 |
|
|
Lifting Motor |
Power |
kw |
0.75 |
1.5 |
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
|
Rotating Speed |
min |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
|
Voltage |
V |
200-440 |
200-440 |
200-440 |
200-440 |
200-440 |
200-440 |
200-440 |
|
|
Chain Falls |
/ |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
|
|
Chain Specification |
mm |
Ø6.3 |
Ø7.1 |
Ø10.0 |
Ø10.0 |
Ø11.2 |
Ø11.2 |
Ø11.2 |
|
|
Net Weight |
kg |
53 |
67 |
118 |
125 |
132 |
138 |
181 |
|
Applications
Perfect for construction, maintenance, rigging, and several other applications, OUR ying-lift Manual Trolley Type Electric Chain Hoist, Crane Lift 0.5T-5T Lifting Machine Electric Chain Hoists with Manual Trolley are available in various types of configurations and constructions. And also ideal for applications with low ceilings and limited headroom.
Competitive Advantage
• All units of this series up to a capacity of 5000 kg are provided with single chain fall;
• The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
• The trolley wheels are excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
• Anti-drop and anti-tilt devices as standard.
