Twin Cage Passenger Hoist

Twin Cage Passenger Hoist
Twin Cage Passenger Hoist Twin Cage Passenger Hoist Twin Cage Passenger Hoist Twin Cage Passenger Hoist Twin Cage Passenger Hoist

Large Image :  Twin Cage Passenger Hoist Get Best Price

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: HAOKE
Certification: CE , ISO
Model Number: SS100, SS100/100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Export Standard Package
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Highlight:

construction elevators





Twin Cage Red Passenger Hoist Elevator 2000kg SS100 / 100 For Construction







Quick Detail:





Place of Origin: Beijing China (Mainland)

Brand Name: HAOKE

Model Number: SS100, SS100/100

Rated Loading Capacity(kg): 1000kg/1000kg

Lifting Speed/ Hoist Speed: 23.5m/min

Basic Installation Height: 24m

Attachment Installation Height/ Max Lifting Height: 60m

Cage Dimension(L*W*H): 2800mm*1500mm*1900mm

Load Weight: 2000kg

After-sales Service Provided: Engineers available to service machinery overseas

Voltage available:: 110V, 220V, 240V, 380V, 400V, 415V, 440V etc.

Safety device:: position limit, stop limit, load limit

Falling Protection: buffer device etc.

Motor Power:: 2*11 kw

Sectional Dimension of Bracket/ Mast Section Dimension(L*W):: 0.8m*0.8m

Total Weight:: Single Cage: 3860 kg

Double Cage: 5280kg

Steel Rope Length: 150m (optional)

Steel Rope Model: 6*37+1-12-170-Right







Technical Parameters:



SS100/100 Construction Hoist Elevator
Item Unit Parameter
Basic Installation Height m 24
Attachment Installation Height m 60
Rated Lifting Capacity Kg 1000kg/1000kg
Lifting Speed m/min 23.5m/min
Cage Dimension (L*W*H) m 2.8*1.5*1.9
Sectional Dimension Of Bracket m 0.8*0.8
Motor Power Kw Single-cage 11 Double-cage 22
Steel Rope Model   6*37+1-12-170-Right
Steel Rope Length(Typical) m 150
Total Weight Single-cage (at 30m) Kg 3860
Double-cage (at 30m) Kg 5280









Description:



Construction hoist elevator is is a vertical handling machine for materials and worker conveying. It is highly efficient, convenient and safe to operate, stable in performance.



This construction hoist elevator is designed with multiple devices to guarantee its stable performance and safe operation, such as rope breaking protection device, safe docking device, buffer device, height limit device, rope anti-loosening device etc.



There are two way for floor selecting and floor leveling.

1. Manual Control: control directly by operators.

2. Computer Automatic Control: automatic self positioning system can easily realize floor selecting and leveling without manual control, which can easily realize leveling and highly improve work efficiency and precision.









Characteristic:

  • High Safety and Multiple Protection Device

A. over-weight protection, B. phase shortage and phase sequence protection, C. safety gate protection, D. hoist motor reverse rotation protection, E. height limiting device, F. Sensor failure protection, G. circuit short and electric overload protection, H. alarm protection, I. data protection.

  • Advanced Control System
  • Four rope machine for rope leveling; B. Visualized function setting C. Electric height ruler; D. Computer automatic self positioning and leveling E. Intelligent deviation correction; F. Built-in interphone; G. floor selecting can be automatically reset; H. Code Protection
  • Easy Operation
  • Durable and easy to maintain
  • Anti-dust and anti-disturbing







Application:



Construction hoist elevator is a conveying machine for materials and worker. It can be widely applied in building construction, mining, multi-storey workshop, warehouse, station, wharf and other industrial construction etc. It is convenient, efficient, and safe.

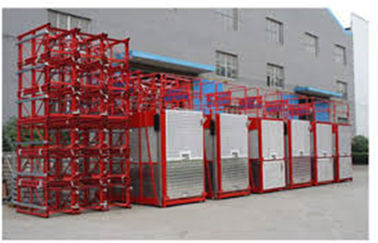

Twin Cage Passenger Hoist 0      Twin Cage Passenger Hoist 1
